Introduction

Variable resistors are everywhere — in the volume knob on your amplifier, the calibration trimmer on your sensor board, the dimmer switch on your wall, and the digital potentiometer inside your programmable power supply. This guide covers all five types, how each works internally, IEC and ANSI symbols, wiring methods, and how to select the right one.

Variable Resistor Types



What Is a Variable Resistor?

A variable resistor is an electromechanical (or electronic) component whose resistance value can be adjusted — either mechanically by moving a wiper contact along a resistive element, or electronically via digital control signals.


The standard definition from IEC 60393: 'a component in which the resistance value can be varied in a continuous or stepped manner by mechanical or electronic means.'
Core structure: Resistive element (carbon/cermet/wirewound track) + Wiper (sliding/rotating contact) + Terminal 1, Terminal 2 (fixed ends) + Wiper Terminal W (movable output).

Term

Terminals Used

Function

Notes

Variable Resistor

Broad term

Any adjustable resistor

Umbrella category

Potentiometer

All 3 (T1, T2, Wiper)

Voltage divider

Outputs fraction of input voltage

Rheostat

2 (T1+Wiper or T2+Wiper)

Variable series resistance

Controls current flow

Trimmer (Preset)

2 or 3

PCB calibration

Screwdriver-adjusted

Digital Potentiometer

Digital interface

Electronically controlled

I2C/SPI control



Key insight: Potentiometer and rheostat are the same physical component wired differently. Use all 3 terminals = potentiometer. Use 2 terminals (one fixed + wiper) = rheostat.

How Does a Variable Resistor Work?

The wiper contact moves along the resistive track. At any position:
  - R(T1 to Wiper) = proportion of total R based on position
  - R(Wiper to T2) = remainder
Potentiometer mode formula: V_out = V_in x [R_wiper-to-T2 / R_total]
Example: 9V supply, 10k pot at 60% position: V_out = 9 x (6,000/10,000) = 5.4V
Rheostat mode: Connect T1 (or T2) and Wiper only. ALWAYS short the unused terminal to the wiper to prevent open-circuit damage.

3-Terminal Potentiometer Mode vs 2-Terminal Rheostat Mode Wiring Diagram

Types of Variable Resistors

Rotary Potentiometer

Overview: A circular resistive track swept by a rotating wiper shaft. The most common variable resistor in consumer and industrial electronics.

Key features/advantages:

·   * Single-gang, dual-gang (stereo), multi-turn (3/5/10 turns)

·   * Wide range: 100 ohm to 10 Mohm

·   * Panel-mount and PCB-mount versions

·   * Lifespan: 10,000-100,000 cycles


Limitations:

·   * Mechanical wear over time

·   * Susceptible to contamination if not sealed

Typical applications: Volume controls, brightness dimmers, position feedback sensors


Slide Potentiometer (Fader)

Overview: Linear track swept by a sliding wiper. Visual position indication — you can see where the slider is.


Key features/advantages:

·   * Preferred for audio mixing where multiple controls must be visible

·   * Available in 45 mm, 60 mm, 100 mm travel


Limitations:

·   * Longer form factor; more susceptible to dust ingress

Typical applications: Audio mixing consoles, graphic equalizers, DJ crossfaders


Rheostat

Overview: High-power variable resistor using two terminals. Wirewound construction handles significant current and power.

Key features/advantages:

·   * Power rating: 1W to 500W

·   * Resistance: 0.1 ohm to 100 kohm

·   * Used for bench testing and lab applications


Limitations:

·   * Obsolete for direct power control (inefficient — wastes energy as heat); replaced by PWM in modern designs

Typical applications: Lab current limiting, resistance substitution boxes, motor test benches


Trimmer Potentiometer (Trimpot)

Overview: Small PCB-mounted variable resistor for factory calibration or infrequent adjustment. Adjusted with a screwdriver.


Key features/advantages:

·   * Single-turn (300 deg) or multi-turn (5/10/25 turns)

·   * Top-adjust or side-adjust mounting

·   * Mechanical life: 200-500 adjustment cycles typical


Limitations:

·   * Not for user operation — limited adjustment cycles

·   * Carbon types drift with temperature

Typical applications: Sensor zero/span calibration, op-amp offset null, oscillator trimming


Digital Potentiometer (DigiPot)

Overview: An IC that replicates mechanical potentiometer behavior using electronic switching. Resistance is set digitally via I2C, SPI, or Up/Down pulses.

Key features/advantages:

·   * No mechanical wear

·   * MCU/FPGA compatible

·   * NV (non-volatile) versions remember position after power-off

·   * Multiple channels in one IC (e.g., AD5206: 6-channel)


Limitations:

·   * Very limited wiper current (<1 mA)

·   * Parasitic capacitance limits high-frequency AC use

·   * Not for mains voltages

·   * Higher cost than mechanical pots

Typical applications: Programmable gain amplifiers, automatic volume control, calibration systems


Five-Type Comparison Table

Type

Adjustment

Power Handling

Turns

Cost

Best For

Rotary Pot

Manual (shaft)

Low (0.1-2W)

1 or multi

$

User controls, panel

Slide Pot

Manual (slider)

Low (0.1-1W)

$

Audio faders, EQ

Rheostat

Manual

High (1-500W)

1 or multi

$$

Lab, test, high power

Trimmer

Screwdriver

Very low (<0.5W)

1 or multi

$

PCB calibration

Digital Pot

Electronic (I2C/SPI)

Very low (<1mA wiper)

$$$

MCU-controlled systems



Potentiometer Taper Types

The taper describes how resistance changes with wiper position. It is not always linear.

Taper Type

Behavior

Code (Bourns/Alps)

When to Use

Linear (Type B)

Resistance changes proportionally with rotation

B

General purpose: sensors, LED dimming, circuit tuning

Audio / Log (Type A)

Logarithmic — small change at low end, large change at high end

A

Volume controls — matches human hearing perception

Anti-Log / Reverse Log (Type C)

Opposite of audio taper

C

Tone controls, special audio applications



Why volume controls use log taper: Human hearing is logarithmic (decibels). A linear pot sounds like 'all the volume change happens in the first 15-20% of rotation.' A log taper pot distributes perceived loudness change evenly across the full rotation.
Warning: European and Asian manufacturers sometimes swap the A/B taper code. ALWAYS verify with the datasheet.

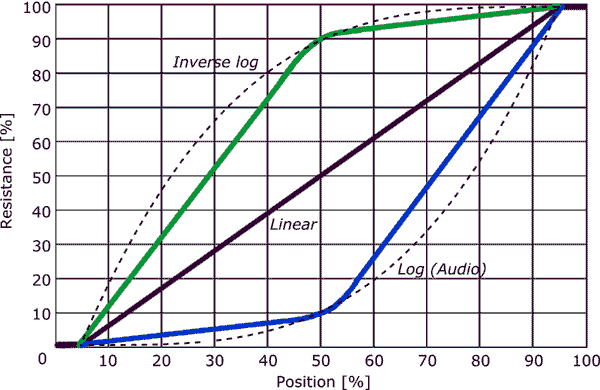

Linear vs Log (Audio) Taper Curve Comparison

Variable Resistor Symbols

IEC Standard Symbols (Europe/Asia):
  - Potentiometer: Rectangle with arrow touching midpoint
  - Rheostat: Rectangle with single arrow at one end
  - Preset/Trimmer: Rectangle with T-shaped arrow (screwdriver indicator)
ANSI/IEEE Standard Symbols (North America):
  - Potentiometer: Zigzag resistor symbol with arrow at midpoint
  - Rheostat: Zigzag with single arrow
  - Preset: Zigzag with filled arrow or diagonal line


Key Specifications Explained

Material

Temp Coeff

Noise

Lifespan

Use Case

Carbon Composition

500-1,500 ppm/degC

High

10K cycles

Low-cost prototyping

Carbon Film

200-500 ppm/degC

Medium

50K cycles

General consumer

Cermet

100-300 ppm/degC

Low

100K cycles

Industrial calibration

Wirewound

<50 ppm/degC

Very low

200K+ cycles

Precision / power

Conductive Plastic

<100 ppm/degC

Extremely low

1M+ cycles

Military / medical



Component Type

Typical Power Rating

Carbon film potentiometer

0.1W - 0.5W

Cermet trimmer

0.1W - 0.5W

Wirewound trimmer

0.5W - 3W

Industrial wirewound rheostat

5W - 500W

Digital potentiometer (wiper)

<1mA



Variable Resistor Applications

Audio Volume Control

Dual-gang log-taper potentiometer controls both L and R channels simultaneously. Log taper matches human auditory perception for smooth, natural volume changes.


Arduino & DIY Electronics

Potentiometers are the simplest way to provide analog input to a microcontroller.
Wiring: T1 to 5V, T2 to GND, Wiper to A0
Code:
  int val = analogRead(A0);  // 0-1023
  int brightness = map(val, 0, 1023, 0, 255);
  analogWrite(9, brightness);  // LED PWM control


Sensor Calibration & Circuit Tuning

Cermet multi-turn trimmer on an op-amp circuit sets gain to within 0.1% of target. Zero-point and full-scale calibration on sensor boards without board removal.


Industrial Motor Speed Control (Historical)

Pre-power-electronics: rheostats in series with DC motors provided speed control by limiting current. Inefficient (wastes energy as heat). Modern designs use PWM motor drives. Rheostats remain in lab testing.


Medical & Scientific Equipment

Precision wirewound/conductive-plastic trimmers in ECG and infusion pump rate circuits must meet IEC 60601-1 creepage/clearance requirements and survive IPA cleaning.

Arduino Potentiometer Wiring Diagram — LED Brightness Control


How to Wire a Variable Resistor

Potentiometer (3-terminal voltage divider):
  Vcc --- T1 --- [Resistive Track] --- W (wiper) --- Output
                                      |
                              [Resistive Track]
                                      |
  GND --- T2
Rheostat (2-terminal variable resistance):
  Circuit --- T1 --- [Track] --- W (wiper) --- Circuit
  T2 --- SHORT TO W (prevents open-circuit on wiper loss)
Arduino: T1 to 5V, T2 to GND, W to A0. Use analogRead() -> map() to scale output.

Common Wiring Mistake

Problem

Fix

Unused rheostat terminal left floating

Open-circuit spike if wiper loses contact

Short unused terminal to wiper

Reversing T1 and T2

Log taper pot works backwards

Check markings; verify with multimeter

Overdriving digital pot wiper

Wiper has ~1mA max — fails silently

Use op-amp voltage follower buffer after wiper

Wirewound pot for audio

Inductance causes HF distortion

Use carbon or conductive plastic for audio

Paralleling pots without isolation

Loading error — divider ratio changes

Use op-amp buffer between stages



Variable Resistor Selection Guide

Your Need

Recommended Type

User-adjustable control (knob/slider)

Rotary or Slide Potentiometer

One-time or occasional calibration

Cermet multi-turn trimmer

High-power resistance control

Wirewound rheostat

MCU-controlled / software-adjustable

Digital potentiometer (I2C/SPI)

Audio volume/tone control

Log taper rotary potentiometer

Precision (<0.1% long-term)

Wirewound or conductive plastic multi-turn



Additional rules:
  - Resistance value: Audio = 10k-100k; Op-amp trim = 1k-100k; Arduino input = 10k
  - Power derating: use 50% rule — if 0.2W dissipated, choose 0.5W rated part
  - Taper: volume/tone = Log (Type A); all others = Linear (Type B)
  - Environment: sealed/gasketed for dust/moisture; conductive plastic for vibration

Troubleshooting Common Issues

Symptom

Likely Cause

Solution

Crackling/scratchy noise during adjustment

Contamination; worn wiper

Clean with DeoxIT D5 contact cleaner; replace if severe

Resistance jumps unexpectedly

Worn wiper at specific positions

Replace pot; switch to conductive plastic for longer life

Output stuck at one extreme

Broken wiper; open terminal

Test with multimeter; check for cold solder joint

Value drifts after calibration

Carbon trimmer thermal instability

Replace with cermet or wirewound; allow warm-up time

Digital pot output noisy/incorrect

I2C/SPI address conflict; supply noise

Check device address; add 100nF decoupling cap on Vcc

Pot feels stiff or notchy

Contaminated shaft; cold environment

Apply silicone lubricant to shaft

Infinite resistance at one end of travel

Unused terminal floating (rheostat mode)

Connect unused terminal to wiper



FAQ — Frequently Asked Questions

Q1: What is the difference between a potentiometer and a variable resistor?

All potentiometers are variable resistors, but not all variable resistors are potentiometers. 'Variable resistor' is the general category. A potentiometer uses all 3 terminals as a voltage divider. When only 2 terminals are used (one end + wiper), it functions as a rheostat.


Q2: Can I use a potentiometer as a rheostat?

Yes. Connect T1 and the Wiper as your two circuit nodes, and short T2 to the Wiper (safer than leaving floating). The resistance between T1 and Wiper will vary from 0 ohm to full resistance as you rotate.


Q3: Why does my volume control sound 'jumpy' — all the volume at the low end?

You have a linear taper potentiometer where an audio/log taper is needed. Human hearing is logarithmic: a linear pot dumps most volume change in the first 15-20% of rotation. Replace with an audio taper (Type A) potentiometer.


Q4: How do I connect a potentiometer to Arduino?

Connect T1 to Arduino 5V, T2 to GND, and Wiper to analog pin A0. Use analogRead() to get 0-1023. Use map(value, 0, 1023, min, max) to scale to your application range.


Q5: What is a trimpot and when should I use it?

A trimpot (trimmer potentiometer) is a small PCB-mounted variable resistor for infrequent calibration — not for regular user adjustment. Use it to set bias, zero, gain, or frequency during manufacturing or maintenance. Choose cermet multi-turn types for stability.


Q6: What does '10K linear' mean on a potentiometer?

'10K' = total resistance from T1 to T2 is 10,000 ohm (10 kohm). 'Linear' = resistance changes proportionally with shaft rotation (also noted as 'Type B'). Audio/Log taper = 'Type A.'


Q7: Can a variable resistor handle AC current?

Yes, mechanical variable resistors work with both AC and DC. However, wirewound types have inductance affecting AC at higher frequencies. For audio, carbon or cermet types are better. Digital potentiometers are limited to low-frequency AC due to parasitic capacitance.


Q8: How long does a potentiometer last?

By type — Carbon: 5,000-10,000 cycles; Carbon film: 30,000-50,000; Cermet: 100,000+; Conductive plastic: 1,000,000+ cycles. For daily-use panel controls, choose cermet or conductive plastic.


Q9: What is a digital potentiometer?

A digital potentiometer (DigiPot) is an IC providing adjustable resistance via digital signals (I2C, SPI, or Up/Down pulses). No mechanical wear; MCU-compatible; NV versions remember position. But: very limited wiper current (1mA max) and higher cost.


Q10: Single-turn or multi-turn trimmer — how to choose?

Single-turn (300 deg) = fast to adjust, low resolution. Multi-turn (5/10/25 turns) = fine resolution for precision calibration within +/-1%. Trade-off: more adjustment time. Use multi-turn whenever precise setting is required.


Conclusion

The right variable resistor choice comes down to five things: type, resistance value, power rating, taper, and material.
  * Rotary/slide potentiometers: user-facing controls
  * Multi-turn cermet trimmers: PCB calibration
  * Rheostats: high-power bench and lab only
  * Digital potentiometers: electronic control or non-volatile memory needed
  * Taper: always Log for audio; Linear for everything else
Welllinkchips stocks a wide range of potentiometers, trimmer resistors, and passive components. Contact us for datasheet support or bulk pricing.

Subscribe to Welllinkchips !
Your Name
* Email
Submit a request
