If you've ever pushed a child on a swing, you already understand the core idea behind electronic oscillations. You give the swing a push at just the right moment, it swings back, and with each cycle you add just enough energy to keep it going. That back-and-forth motion — that rhythm — is an oscillation. Electronic oscillations work exactly the same way, except instead of a rope and a seat, we use electric and magnetic fields stored in components called capacitors and inductors.

In this guide, we'll walk through how electronic oscillations actually work, what makes them sustain, the different types of oscillators you'll encounter in practice, and how to pick the right one for your project.

An electronic oscillation is a continuous, repeating exchange of energy between two forms — typically between an electric field (stored in a capacitor) and a magnetic field (stored in an inductor). When you connect a charged capacitor to an inductor, the capacitor begins to discharge through the coil. As current flows, the inductor builds up a magnetic field. Once the capacitor is fully discharged, the magnetic field starts collapsing, pushing current back the other way and recharging the capacitor — but with opposite polarity. This cycle repeats.

Think of it like a spring-mass system. Pull the spring, release it, and the mass oscillates back and forth. The spring stores potential energy (like a capacitor), the mass stores kinetic energy (like an inductor). Energy bounces between the two, and if there is no friction, it would oscillate forever. In real circuits, there is always some resistance, so the oscillations gradually die out unless something replenishes the lost energy.

That is where oscillators come in: an electronic oscillator is a circuit specifically designed to sustain these oscillations by constantly feeding back just enough energy to replace what is lost.

The frequency of oscillation is determined by the values of the capacitor and inductor. Larger components store more energy but respond more slowly, resulting in lower frequencies. Smaller components swap energy faster, producing higher frequencies.

Back in 1921, German physicist Heinrich Barkhausen worked out the two conditions that any oscillator must satisfy. Translated into plain language, they are:

Condition 1 — The loop gain must be at least 1. This means the signal that travels around the feedback loop must come back at least as strong as it started. If it comes back weaker, the oscillations will die out. In practice, oscillator designs usually start with a loop gain slightly greater than 1, so oscillations grow quickly from noise.

Condition 2 — The total phase shift around the loop must be a multiple of 360 degrees. This is the positive feedback requirement. If the returning signal is inverted (180 degrees out of phase), it cancels rather than reinforces. The circuit must be designed so that the feedback is in phase.

Both conditions must be met simultaneously. A circuit can have plenty of gain but no oscillation if the phase is wrong, and it can have perfect phase but still not oscillate if the gain is below 1.

Think of it like keeping a swing moving. You have to push at the right moment (correct phase) and with enough force (loop gain >= 1). Push at the wrong time, even hard, and you kill the motion.

An ideal LC tank circuit — just a capacitor and inductor connected together — produces what is called a damped oscillation. The energy stored in the circuit sloshes back and forth between the capacitor and inductor, but each cycle loses a small fraction to resistance in the wires and components. The oscillations start strong and gradually fade away, like a swing that is left alone and slowly stops.

Real-world oscillators need to overcome this damping. The solution is to add an active device — a transistor, op-amp, or other amplifying element — that samples a portion of the output, amplifies it, and feeds it back to the tank circuit. This replenishes the lost energy on each cycle, keeping the oscillations going at constant amplitude.

The process unfolds in three stages. During startup, the circuit's own noise provides the initial signal. The amplifier's gain, set slightly above 1, causes this tiny noise to grow exponentially. As the oscillations build up, the circuit's nonlinearities naturally limit the gain, and the system settles into a steady state where the loop gain equals exactly 1. From this point on, the oscillation runs at constant amplitude and frequency indefinitely.

Not all oscillators are built the same. The type of frequency-determining element used — whether a resistor-capacitor pair (RC), an inductor-capacitor pair (LC), or a quartz crystal — defines where each oscillator type excels and where it struggles.

Broadly, oscillators fall into two families. Harmonic oscillators (also called sinusoidal oscillators) produce clean, single-frequency sine waves using resonant circuits or crystals. Relaxation oscillators produce non-sinusoidal waveforms — square waves, sawtooth waves, or triangle waves — by charging and discharging a capacitor through a resistor and switching element.

RC Oscillators

An RC oscillator uses a resistor-capacitor network to set frequency. The most common design is the Wien Bridge oscillator, which uses two resistors and two capacitors in a bridge configuration to produce a bandpass response. RC oscillators are inexpensive and easy to build, but their frequency accuracy is limited by the tolerance of the resistors and capacitors themselves. They are best suited for audio applications below about 1 MHz.

LC Oscillators

LC oscillators use the resonance of an inductor-capacitor tank circuit to set frequency. Two classic topologies dominate: the Hartley oscillator, where frequency is set by two inductors and a capacitor, and the Colpitts oscillator, which uses two capacitors and an inductor. LC oscillators are the workhorses of radio frequency design, covering everything from AM/FM transmitters to the local oscillators inside every RF receiver.

Crystal Oscillators

A quartz crystal is one of the most remarkable passive components in electronics. When you apply an electric field to a quartz slice, it physically vibrates at a precise, extremely stable frequency determined by its physical dimensions and crystal structure. This mechanical resonance is converted back to an electrical signal, and the result is a frequency source with stability measured in parts per million (ppm) — far beyond what any LC or RC circuit can achieve.

Common crystal frequencies include 32.768 kHz (used in every digital watch and real-time clock), 8 MHz and 25 MHz (common MCU clock crystals), and 40 MHz or 48 MHz (used in USB applications). For communications systems requiring the highest stability, temperature-compensated crystal oscillators (TCXOs) and oven-controlled crystal oscillators (OCXOs) push stability into the parts-per-billion range.

With all these options, the right choice comes down to four questions:

What frequency do you need? If you are building a 16 MHz microcontroller clock, a simple crystal oscillator is the standard answer. If you are generating a 440 Hz audio tone, an RC oscillator will do the job at a fraction of the cost. For RF at 433 MHz, you need an LC oscillator or a PLL synthesizer.

How precise does your frequency need to be? A toy project can tolerate 10% frequency error. A communication link or GPS receiver cannot tolerate more than a few ppm. This is the single biggest factor driving oscillator cost. A 32.768 kHz crystal costs a few cents; an OCXO with sub-ppb stability costs hundreds of dollars.

What is your power budget? Battery-powered designs favor simpler oscillator topologies with low quiescent current. Crystal oscillators and their associated load capacitors draw microamps during startup.

What waveform do you need? If you need a clean sine wave, look at harmonic oscillators (LC or crystal-based). If a square wave is acceptable — which is the case for most digital clock inputs — a crystal oscillator followed by a Schmitt trigger inverter is the most common approach.

Every piece of electronics around you relies on some form of oscillation. Here are the most common contexts where oscillators show up in practice.

Microcontrollers need a clock to execute instructions in sequence. Nearly all MCUs accept an external crystal — typically 8 MHz, 16 MHz, or 25 MHz — and divide it internally down to the core clock speed. The crystal's stability directly affects how accurately the MCU keeps time, which matters for UART communication, motor control loops, and any time-sensitive operation.

Wireless communication is built on oscillators. The carrier frequency of an FM radio transmitter, the local oscillator inside an RF receiver, and the PLL that synthesizes precise frequencies in a cellular modem — all depend on oscillators. LC oscillators and VCOs are central to these applications.

Audio synthesizers use relaxation oscillators to generate raw waveforms — triangle, sawtooth, square — that form the basis of electronic music. Industrial control systems use oscillators for timing functions: generating precise delays, creating PWM signals for motor speed control, and providing clock signals for PLC operation.

What is an electronic oscillation?
An electronic oscillation is a continuous, periodic variation in voltage or current that repeats over time. It occurs when energy alternately stores in an electric field (capacitor) and a magnetic field (inductor), creating a back-and-forth exchange. Without active compensation for losses, this oscillation decays. With a feedback amplifier replenishing the lost energy, it becomes sustained.

How do electronic oscillators work?

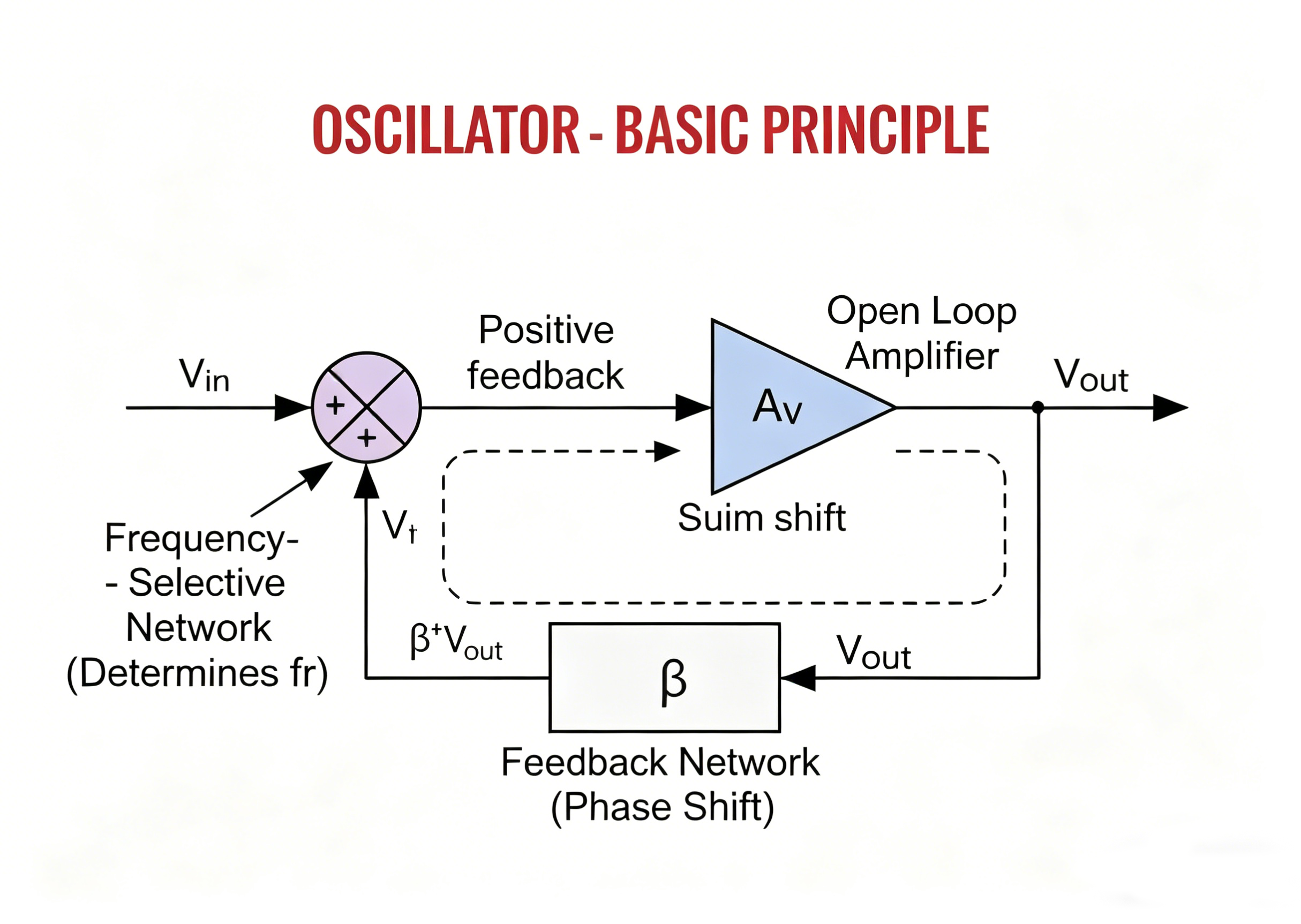

An oscillator works by combining an amplifying element with a frequency-selective feedback network. The amplifier provides gain. The feedback network — RC network, LC tank circuit, or crystal — determines the oscillation frequency and ensures the returned signal is in phase (positive feedback). As long as the loop gain is at least 1 and the phase condition is met, the circuit oscillates.

What is the difference between RC, LC, and crystal oscillators?
RC oscillators use resistor-capacitor networks for frequency selection and work well at low frequencies (below ~1 MHz) but have poor stability. LC oscillators use inductor-capacitor resonant circuits and are the standard for RF applications from ~100 kHz to several GHz. Crystal oscillators use a quartz crystal for frequency selection and offer by far the best stability (ppm to ppb), making them essential for precision timing and communications.

What is the Barkhausen criterion?
The Barkhausen criterion states that an oscillator will sustain steady-state oscillations when the loop gain around the circuit equals exactly 1 (or slightly greater at startup) and the total phase shift around the loop is 0 degrees or 360 degrees. In simpler terms: the signal must come back from the feedback loop as strong as it left and in phase with the original.

Why do LC oscillations naturally decay?
Because real inductors and capacitors have some resistance. Each time energy cycles from the capacitor to the inductor and back, a small fraction is converted to heat. Like a swing gradually slowing down due to air resistance, the oscillations shrink until the circuit reaches equilibrium. This is why an LC tank circuit alone cannot sustain oscillation — it needs an active amplifier to replenish the lost energy.

What is a VCO (voltage-controlled oscillator)?
A VCO is an oscillator whose output frequency can be varied by applying a control voltage. They are a core building block of phase-locked loops (PLLs), frequency synthesizers, and frequency modulation circuits. As the control voltage changes, a varactor diode or other voltage-sensitive element shifts the oscillator's resonant frequency. VCOs are everywhere in wireless communications and frequency synthesis.

Where are relaxation oscillators used?
Relaxation oscillators are used in applications where a non-sinusoidal waveform is acceptable or desirable. Classic uses include 555 timer circuits (square waves and PWM), function generators, LED flashers, and simple tone generators. They are easier to build than sinusoidal oscillators and can operate over an extremely wide frequency range with the same basic circuit.

How do I test if an oscillator is working?
The most direct method is to connect an oscilloscope probe to the oscillator output (using a 10x probe to minimize loading). You should see a clean sine wave for harmonic oscillators, or a square/triangle wave for relaxation oscillators, at the expected frequency. If the waveform is distorted, noisy, or absent, check the power supply, verify component values, and ensure the loop gain is sufficient to start oscillation.
