Texas Instruments UCC28951 Product Info

Parameters

Topology	Phase-shifted full bridge
Control mode	Current, Peak current mode, Voltage
Features	Adjustable switching frequency, Current limiting, Enable/Shutdown, Error amplifier, Green mode, Light-load efficiency, Programmable slope compensation, Soft start, Soft switching, Synchronization pin, Thermal shutdown
Duty cycle (max) (%)	97

Package

TSSOP (PW)-24-49.92 mm² 7.8 x 6.4

Features

Enhanced zero-voltage switching (ZVS) range
Direct synchronous rectifier (SR) control
Light-load efficiency management including:
- Burst mode operation
- Discontinuous conduction mode (DCM), dynamic SR on/off control
Average- or peak-current mode control with programmable slope compensation and voltage-mode control
Closed-loop soft-start and enable function
Programmable switching frequency up to 1 MHz with bidirectional synchronization
(±3%) cycle-by-cycle current limit protection with hiccup mode support
150µA start-up current
VDD undervoltage lockout
Wide temperature range: –40°C to +125°C

Enhanced zero-voltage switching (ZVS) range
Direct synchronous rectifier (SR) control
Light-load efficiency management including:
- Burst mode operation
- Discontinuous conduction mode (DCM), dynamic SR on/off control
Average- or peak-current mode control with programmable slope compensation and voltage-mode control
Closed-loop soft-start and enable function
Programmable switching frequency up to 1 MHz with bidirectional synchronization
(±3%) cycle-by-cycle current limit protection with hiccup mode support
150µA start-up current
VDD undervoltage lockout
Wide temperature range: –40°C to +125°C

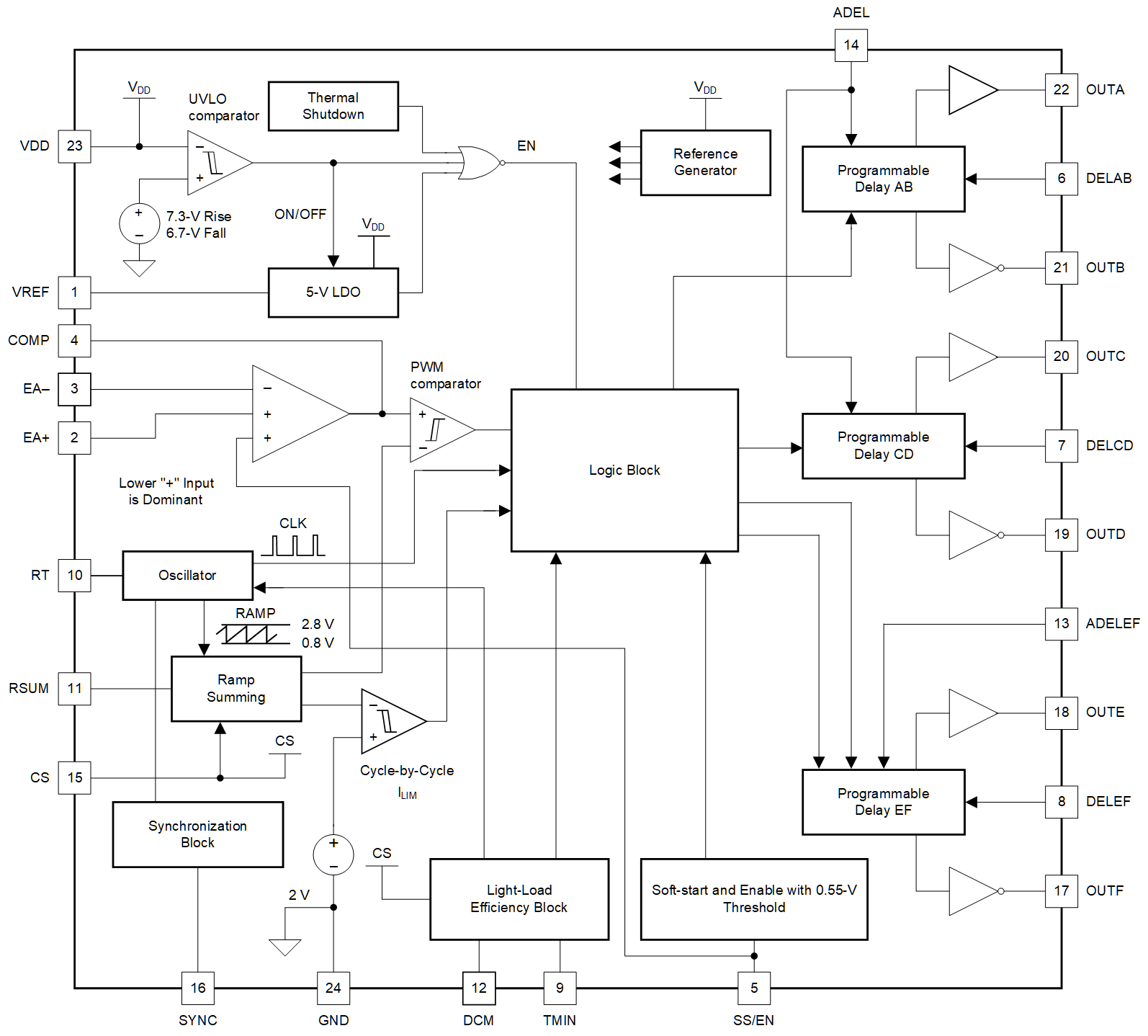

Description

The UCC28951 controller is an enhanced version of the UCC28950. It is a fully compatible drop-in replacement for the UCC28950. The UCC2895x devices use advanced control of the full-bridge in addition to active control of the synchronous rectifier (SR) output stage.

ZVS operation ensured over a wide range of operating conditions, while the load current naturally tunes the switching delays of the secondary-side synchronous rectifiers(SR). This functionality maximizes overall system efficiency.

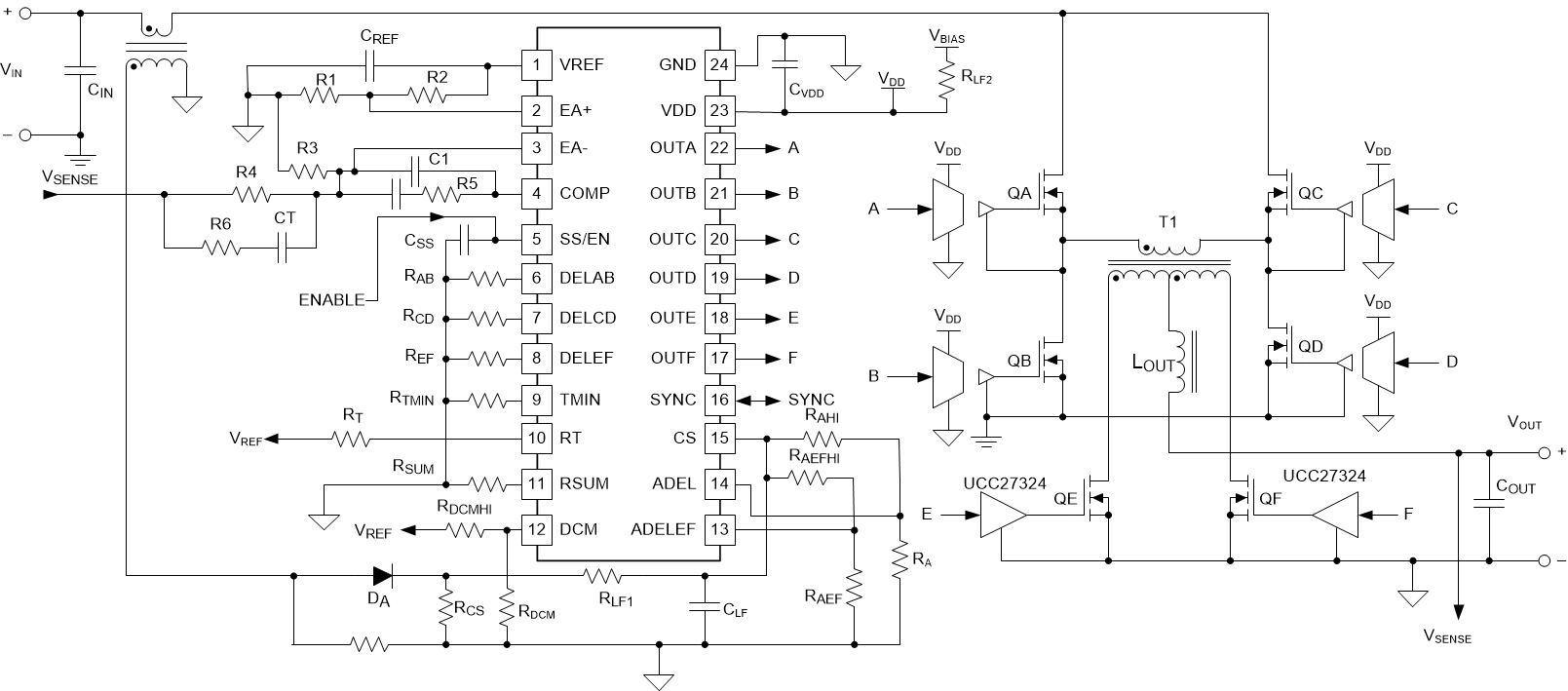

Easily get started with the UCC2895x 600W phase shifted full bridge design review/application note,

The 24-pin, TSSOP package complies with RoHS requirements.

The UCC28951 controller is an enhanced version of the UCC28950. It is a fully compatible drop-in replacement for the UCC28950. The UCC2895x devices use advanced control of the full-bridge in addition to active control of the synchronous rectifier (SR) output stage.

ZVS operation ensured over a wide range of operating conditions, while the load current naturally tunes the switching delays of the secondary-side synchronous rectifiers(SR). This functionality maximizes overall system efficiency.

Easily get started with the UCC2895x 600W phase shifted full bridge design review/application note,

The 24-pin, TSSOP package complies with RoHS requirements.
