TVS2210
  • TVS2210

TVS2210

ACTIVE

22V flat-clamp surge protection device

Texas Instruments TVS2210 Product Info

1 April 2026 2

Parameters

Vrwm (V)

22

Bi-/uni-directional

Uni-Directional

Package name

DFN1006

Peak pulse power (8/20 μs) (max) (W)

700

IEC 61000-4-5 (A)

25

Breakdown voltage (min) (V)

24.6

Number of channels

1

IO capacitance (typ) (pF)

59

Clamping voltage (V)

28

Package

PICOSTAR (YMZ)-2-0.0774 mm² 0.43 x 0.18

Features

  • Protection against ±1kV, 42Ω IEC 61000-4-5 surge test for industrial signal lines
  • Maximum clamping voltage of 28V at 25A of 8/20µs surge current
  • Robust surge protection:
    • IEC 61000-4-5 (8/20µs): 25A
  • Integrated IEC 61000-4-2 ESD protection
  • Tiny 1.0mm x 0.6mm footprint
  • Protection against ±1kV, 42Ω IEC 61000-4-5 surge test for industrial signal lines
  • Maximum clamping voltage of 28V at 25A of 8/20µs surge current
  • Robust surge protection:
    • IEC 61000-4-5 (8/20µs): 25A
  • Integrated IEC 61000-4-2 ESD protection
  • Tiny 1.0mm x 0.6mm footprint

Description

The TVS2210 robustly shunts up to 25A of IEC 61000-4-5 fault current to protect systems from high power transients or lightning strikes. The device offers a solution to the common industrial signal line EMC requirement to survive up to ±1kV IEC 61000-4-5 open circuit voltage coupled through a 42Ω impedance.

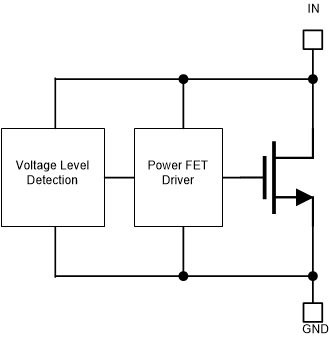

The TVS2210 uses a unique feedback mechanism for precise flat clamping during a fault, allowing system exposure below 30V. The tight voltage regulation allows designers to confidently select system components with a lower voltage tolerance, lowering system costs and complexity without sacrificing robustness.

In addition, the TVS2210 is available in a small, non-encapsulated 1.0mm × 0.6mm footprint which is designed for space constrained applications. The extremely low device leakage and capacitance causes a minimal effect on the protected line.
