- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Exceptions:
- Device CDM ESD Classification Level C3
- Ideal for bridging Serial ATA (SATA) Devices, Such
as Hard Disk Drives (HDD), Solid State Drives (SSD),
or Optical Drives (OD) to Universal Serial Bus (USB) - USB Interface
- Integrated Transceiver Supports SS/HS/FS Signaling
- Best in Class Adaptive Equalizer
- Allows for Greater Jitter Tolerance in the Receiver
- USB Class Support
- USB Attached SCSI Protocol (UASP) for HDD and SSD
- USB Mass Storage Class Bulk-Only Transport (BOT)
Including Support for Error Conditions Per the
13 Cases (Defined in the BOT Specification) - USB Bootability Support
- USB Human Interface Device (HID)
- Supports Firmware Update Via USB Using a TI Provided Application
- SATA Interface
- Serial ATA Specification Revision 2.6 Supporting gen1 and
gen2 Data Rates - Supports hot plug
- Supports Mass-Storage Devices Compatible with the ATA/ATAPI-8
Specification
- Integrated ARM Cortex M3 Core
- Customizable Application Code Loaded From EEPROM Via SPI Interface
- Two Additional SPI Port Chip Selects for Peripheral Connection
- Up to 5 GPIOs for End-User Configuration via HID
- Serial Communications Interface for Debug (UART)
- General Features
- Integrated Spread Spectrum Clock Generation Enables Operation
from a Single Low Cost Crystal or Clock Oscillator - Supports 20, 25, 30 or 40 MHz
- JTAG Interface for IEEE1149.1 and IEEE1149.6 Boundary Scan

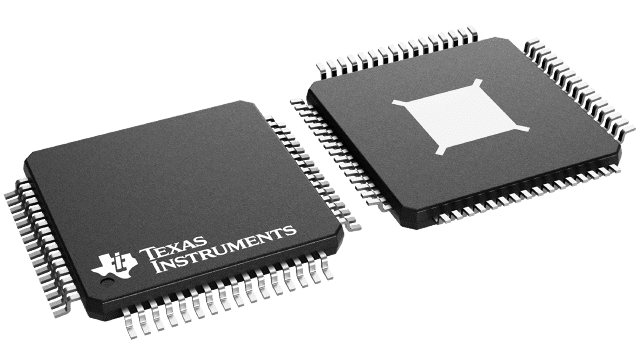

- Available in a Fully RoHS Compliant Package (PAP)
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Exceptions:
- Device CDM ESD Classification Level C3
- Ideal for bridging Serial ATA (SATA) Devices, Such
as Hard Disk Drives (HDD), Solid State Drives (SSD),
or Optical Drives (OD) to Universal Serial Bus (USB) - USB Interface
- Integrated Transceiver Supports SS/HS/FS Signaling
- Best in Class Adaptive Equalizer
- Allows for Greater Jitter Tolerance in the Receiver
- USB Class Support
- USB Attached SCSI Protocol (UASP) for HDD and SSD
- USB Mass Storage Class Bulk-Only Transport (BOT)
Including Support for Error Conditions Per the
13 Cases (Defined in the BOT Specification) - USB Bootability Support
- USB Human Interface Device (HID)
- Supports Firmware Update Via USB Using a TI Provided Application
- SATA Interface
- Serial ATA Specification Revision 2.6 Supporting gen1 and
gen2 Data Rates - Supports hot plug
- Supports Mass-Storage Devices Compatible with the ATA/ATAPI-8
Specification
- Integrated ARM Cortex M3 Core
- Customizable Application Code Loaded From EEPROM Via SPI Interface
- Two Additional SPI Port Chip Selects for Peripheral Connection
- Up to 5 GPIOs for End-User Configuration via HID
- Serial Communications Interface for Debug (UART)
- General Features
- Integrated Spread Spectrum Clock Generation Enables Operation
from a Single Low Cost Crystal or Clock Oscillator - Supports 20, 25, 30 or 40 MHz
- JTAG Interface for IEEE1149.1 and IEEE1149.6 Boundary Scan
- Available in a Fully RoHS Compliant Package (PAP)
