Texas Instruments TUSB9261 Product Info

Parameters

Function	USB3
USB speed (Mbps)	5000
Type	Bridge
Supply voltage (V)	1.1, 3.3
Rating	Catalog
Operating temperature range (°C)	-40 to 85

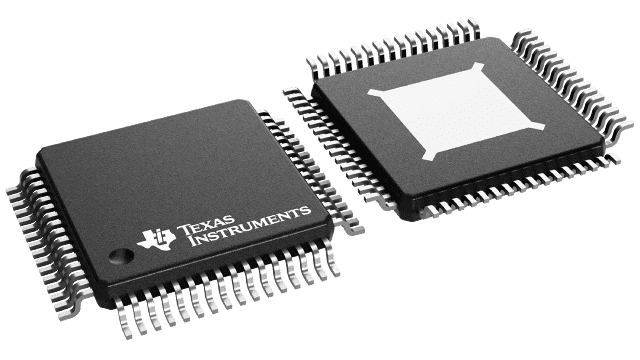

Package

HTQFP (PVP)-64-81 mm² 9 x 9

Features

Universal Serial Bus (USB)
- SuperSpeed USB 3.0 Compliant – TID
  340730020
  - Integrated Transceiver Supports SS/HS/FS
    Signaling
- Best-in-Class Adaptive Equalizer
  - Allows for Greater Jitter Tolerance in the
    Receiver
- USB Class Support
  - USB Attached SCSI Protocol (UASP)
  - USB Mass Storage Class Bulk-Only
    Transport (BOT)
  - Support for Error Conditions Per the 13
    Cases (Defined in the BOT Specification)
  - USB Bootability Support
  - USB Human Interface Device (HID)
- Supports Firmware Update Via USB, Using a
  TI Provided Application
SATA Interface
- Serial ATA Specification Revision 2.6
  - Gen1i, Gen1m, Gen2i, and Gen2m
- Support for Mass-Storage Devices Compatible
  With the ATA/ATAPI-8 Specification
Integrated ARM Cortex M3 Core
- Customizable Application Code Loaded from
  EEPROM by SPI Interface
- Two Additional SPI Port Chip Selects for
  Peripheral Connection
- Up to 12 GPIOs for End-User Configuration
  - Two GPIOs have PWM Functionality for
    LED Blink Speed Control
- Serial Communications Interface for Debug
  (UART)
General Features
- Integrated Spread Spectrum Clock Generation
  Enables Operation from a Single Low-Cost
  Crystal or Clock Oscillator
  - Supports 40 MHz
- A JTAG Interface is Used for IEEE1149.1 and
  IEEE1149.6 Boundary Scan
- Available in a Fully RoHS-Compliant Package

Universal Serial Bus (USB)
- SuperSpeed USB 3.0 Compliant – TID
  340730020
  - Integrated Transceiver Supports SS/HS/FS
    Signaling
- Best-in-Class Adaptive Equalizer
  - Allows for Greater Jitter Tolerance in the
    Receiver
- USB Class Support
  - USB Attached SCSI Protocol (UASP)
  - USB Mass Storage Class Bulk-Only
    Transport (BOT)
  - Support for Error Conditions Per the 13
    Cases (Defined in the BOT Specification)
  - USB Bootability Support
  - USB Human Interface Device (HID)
- Supports Firmware Update Via USB, Using a
  TI Provided Application
SATA Interface
- Serial ATA Specification Revision 2.6
  - Gen1i, Gen1m, Gen2i, and Gen2m
- Support for Mass-Storage Devices Compatible
  With the ATA/ATAPI-8 Specification
Integrated ARM Cortex M3 Core
- Customizable Application Code Loaded from
  EEPROM by SPI Interface
- Two Additional SPI Port Chip Selects for
  Peripheral Connection
- Up to 12 GPIOs for End-User Configuration
  - Two GPIOs have PWM Functionality for
    LED Blink Speed Control
- Serial Communications Interface for Debug
  (UART)
General Features
- Integrated Spread Spectrum Clock Generation
  Enables Operation from a Single Low-Cost
  Crystal or Clock Oscillator
  - Supports 40 MHz
- A JTAG Interface is Used for IEEE1149.1 and
  IEEE1149.6 Boundary Scan
- Available in a Fully RoHS-Compliant Package

Description

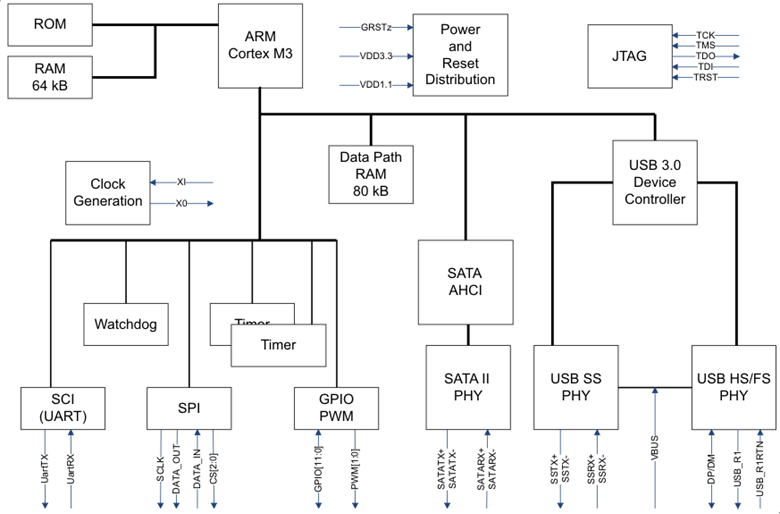

The TUSB9261 is an ARM^® Cortex^® M3 microcontroller based USB 3.0 to serial ATA bridge. It provides the necessary hardware and firmware to implement a USB attached SCSI protocol (UASP)-compliant mass storage device suitable for bridging hard disk drives (HDD), solid state disk drives (SSD), optical drives, and other compatible SATA 1.5-Gbps or SATA 3.0-Gbps devices to a USB 3.0 bus. In addition to UASP support, the firmware implements the mass storage class BOT and USB HID interfaces.
