ACTIVE
Drivers per package |
2 |
Receivers per package |
2 |
Logic voltage (min) (V) |
3.3 |
Data rate (max) (Mbps) |
1 |
Main supply voltage (nom) (V) |
3.3, 5 |
ESD HBM (kV) |
15 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
Vout (typ) (V) |
5.4 |
SOIC (D)-16-59.4 mm² 9.9 x 6

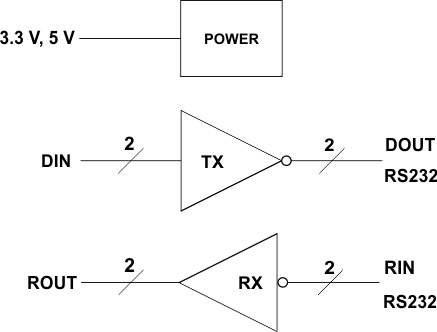

The SN65C3232 and SN75C3232 consist of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin-to-pin (serial-port connection pins, including GND). These devices provide the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at typical data signaling rates up to 1 Mbit/s and a driver output slew rate of 24 V/µs to 150 V/µs.
