ACTIVE
Configuration |
3:1 |
Number of channels |
1 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
5 |
CON (typ) (pF) |
17 |
ON-state leakage current (max) (µA) |
1 |
Bandwidth (MHz) |
334 |
Operating temperature range (°C) |
-40 to 85 |
Features |
Break-before-make |
Input/output continuous current (max) (A) |
0.1 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

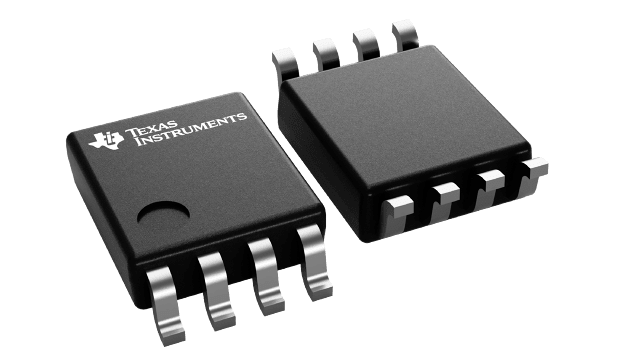

VSSOP (DCU)-8-6.2 mm² 2 x 3.1
The TS5A3357 is a high-performance, 1-channel 3:1 analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and low input/output capacitance and, thus, causes a low signal distortion. The break-before-make feature allows transferring of a signal from one port to another, with a minimal signal distortion. This device also offers a low charge injection which makes this device suitable for high-performance audio and data acquisition systems.
