TS3USBA225
  • TS3USBA225

TS3USBA225

ACTIVE

DP3T USB 2.0 HIGH-SPEED (480Mbps) AND AUDIO SWITCHES

Texas Instruments TS3USBA225 Product Info

1 April 2026 6

Parameters

Protocols

Analog Audio, UART, USB 2.0

Configuration

3:1

Number of channels

2

USB speed (Mbps)

480

Bandwidth (MHz)

1900

Supply voltage (max) (V)

5

Supply voltage (min) (V)

2.7

Ron (typ) (mΩ)

6500

Input/output voltage (min) (V)

-1.8

Input/output voltage (max) (V)

4.3

Supply current (typ) (µA)

25

ESD HBM (typ) (kV)

2

Operating temperature range (°C)

-40 to 85

COFF (typ) (pF)

1

CON (typ) (pF)

3

Off isolation (typ) (dB)

-35

Ron (max) (mΩ)

7500

Turnoff time (disable) (max) (ns)

60

Turnon time (enable) (max) (ns)

20

Rating

Catalog

Package

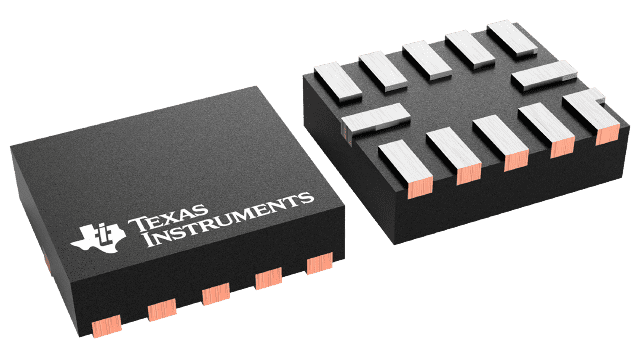

UQFN (RUT)-12-3.4 mm² 2 x 1.7

Features

  • 2.7-V to 5.0-V Operating Power Supply (VCC)
  • MHL/High-Speed USB (480 Mbps) Switch:
    • V I/O Accepts Signals up to 4.5 V (Independent of VCC)
    • 6.5 Ω rON Typical
    • 3 pF CON Typical
    • 1.9 GHz Bandwidth (–3 dB)
  • Audio Switch:
    • 2.5 Ω rON Typical
    • Negative Rail Capability down to –1.8 V
    • Low THD: < 0.05%
    • Internal Shunt Resistors for Click-and-Pop Reduction
  • 1.8-V Compatible Control Input (SEL1 and SEL2) Threshold
  • Minimized Current Consumption (~5 µA) in Power-Down Mode
  • Power-Off Protection: All I/O Pins are High-Z when VCC= 0 V
  • 12-Pin QFN Package (2 mm × 1.7 mm, 0.4 mm Pitch)
  • ESD Performance Tested per JESD 22
    • 2000 V Human-Body Model
      (A114-B, Class II)
    • 1000 V Charged-Device Model (C101)
  • 2.7-V to 5.0-V Operating Power Supply (VCC)
  • MHL/High-Speed USB (480 Mbps) Switch:
    • V I/O Accepts Signals up to 4.5 V (Independent of VCC)
    • 6.5 Ω rON Typical
    • 3 pF CON Typical
    • 1.9 GHz Bandwidth (–3 dB)
  • Audio Switch:
    • 2.5 Ω rON Typical
    • Negative Rail Capability down to –1.8 V
    • Low THD: < 0.05%
    • Internal Shunt Resistors for Click-and-Pop Reduction
  • 1.8-V Compatible Control Input (SEL1 and SEL2) Threshold
  • Minimized Current Consumption (~5 µA) in Power-Down Mode
  • Power-Off Protection: All I/O Pins are High-Z when VCC= 0 V
  • 12-Pin QFN Package (2 mm × 1.7 mm, 0.4 mm Pitch)
  • ESD Performance Tested per JESD 22
    • 2000 V Human-Body Model
      (A114-B, Class II)
    • 1000 V Charged-Device Model (C101)

Description

The TS3USBA225 is a 2-channel single-pole triple-throw (SP3T) multiplexer that supports USB 2.0 High-Speed (480 Mbps) signals in all 3 differential channels. The first two high-speed differential channels also support Mobile High Definition Link (MHL) signaling with resolution and video frame rates up to 720p, 60 fps and 1080i, 30 fps. The remaining differential channel can also be used as an audio switch that is designed to allow analog audio signals to swing negatively. This configuration allows the system designer to use a common connector for audio and USB 2.0 or MHL data.

The TS3USBA225 has a VCC range of 2.7 V to 5.0 V with the capability to pass true-ground audio signals down to –1.8 V. The device also supports a power-down mode that can be enabled when both SEL1 and SEL2 controls are low to minimize current consumption when no signal is transmitting. The TS3USBA225 also features internal shunt resistors on the audio path to reduce clicks and pops that may be heard when the audio switches are selected.
