TS3USB3031
  • TS3USB3031
  • TS3USB3031

TS3USB3031

ACTIVE

DP3T USB 2.0 High-Speed and Mobile High-Definition Link (MHL) (6.5GHz) Switch

Texas Instruments TS3USB3031 Product Info

1 April 2026 3

Parameters

Protocols

MHL, USB 2.0

Configuration

3:1

Number of channels

2

USB speed (Mbps)

480

Bandwidth (MHz)

6500

Supply voltage (max) (V)

4.3

Supply voltage (min) (V)

2.5

Ron (typ) (mΩ)

4500

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

3.6

Supply current (typ) (µA)

28

ESD HBM (typ) (kV)

2

Operating temperature range (°C)

-40 to 85

COFF (typ) (pF)

0.8

CON (typ) (pF)

1

Off isolation (typ) (dB)

-38

OFF-state leakage current (max) (µA)

2

Ron (max) (mΩ)

6000

Turnoff time (disable) (max) (ns)

0.1

Turnon time (enable) (max) (ns)

0.1

Rating

Catalog

Package

WQFN (RMG)-12-3.24 mm² 1.8 x 1.8

Features

  • VCC range: 2.5V to 4.3V
  • Mobile high-definition link (MHL) or mobility display port (MyDP) switch:
    • Bandwidth (–3dB): 6.5GHz
    • RON (typical): 5.5Ω
    • CON (typical): 1.3pF
  • USB switches (2 sets):
    • Bandwidth (–3dB): 6.5GHz
    • RON (typical): 4.5Ω
    • CON (typical): 1pF
  • Current consumption: 28µA (typical)
  • Special features:
    • IOFF protection prevents current leakage in powered-down state (VCC = 0V)
    • 1.8V compatible control inputs (SEL)
    • Overvoltage tolerance (OVT) on all I/O pins up to 5.5V without external components
  • ESD performance:
    • 2kV human-body model (A114B, class II)
    • 1kV charged-device model (C101)
  • Package:
    • 12-pin VQFN package (1.8mm × 1.8mm, 0.4mm pitch)
  • VCC range: 2.5V to 4.3V
  • Mobile high-definition link (MHL) or mobility display port (MyDP) switch:
    • Bandwidth (–3dB): 6.5GHz
    • RON (typical): 5.5Ω
    • CON (typical): 1.3pF
  • USB switches (2 sets):
    • Bandwidth (–3dB): 6.5GHz
    • RON (typical): 4.5Ω
    • CON (typical): 1pF
  • Current consumption: 28µA (typical)
  • Special features:
    • IOFF protection prevents current leakage in powered-down state (VCC = 0V)
    • 1.8V compatible control inputs (SEL)
    • Overvoltage tolerance (OVT) on all I/O pins up to 5.5V without external components
  • ESD performance:
    • 2kV human-body model (A114B, class II)
    • 1kV charged-device model (C101)
  • Package:
    • 12-pin VQFN package (1.8mm × 1.8mm, 0.4mm pitch)

Description

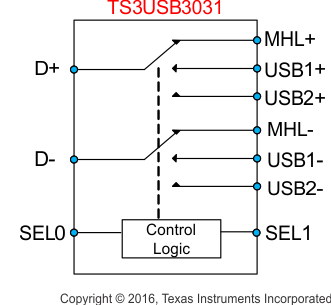

The TS3USB3031 device is a 2-channel, 1:3 multiplexer that includes a high-speed Mobile High-Definition Link (MHL), Mobility Display Port (MyDP) switch, and USB 2.0 High-Speed (480Mbps) switches in the same package. These configurations allow the system designer to save board space and eliminate multiple connectors buy using a common USB or Mico-USB connector for MHL/MyDP signals and two sets of USB data. The MHL/MyDP path supports the latest MHL Rev. 3.0 specification.

The TS3USB3031 has a VCC range of 2.5V to 4.3V and supports overvoltage tolerance (OVT) feature, which allows the I/O pins to withstand overvoltage conditions (up to 5.5V). The power-off protection feature forces all I/O pins to be in high impedance mode when power is not present, allowing full isolation of the signals lines under such condition without excessive leakage current. The select pins of TS3USB3031 are compatible with 1.8V control voltage, allowing them to be directly interfaced with the General Purpose I/O (GPIO) from a mobile processor with out needing additional voltage level shifting circuitry.

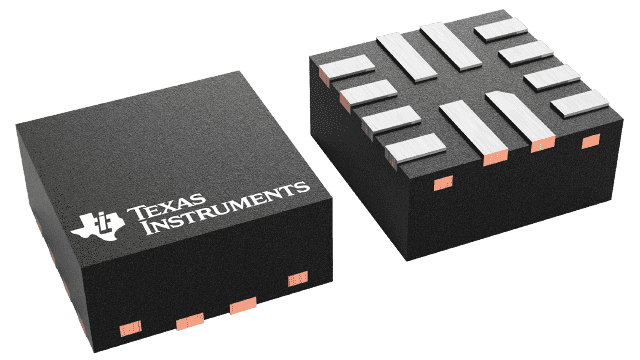

The TS3USB3031 is available in a small 1.8mm × 1.8mm 12-pin VQFN package designed for mobile applications.
