ACTIVE
Rating |
Catalog |
Vin (max) (V) |
-3 |
Vin (min) (V) |
-36 |
Iout (max) (A) |
0.2 |
Output options |
Adjustable Output, Negative Output |
Vout (max) (V) |
-1.2 |
Vout (min) (V) |
-33 |
Noise (µVrms) |
15 |
PSRR at 100 KHz (dB) |
55 |
Iq (typ) (mA) |
0.05 |
Features |
Current limit, Enable, Soft start |
Thermal resistance θJA (°C/W) |
47.7, 63.4 |
Load capacitance (min) (µF) |
2.2 |
Regulated outputs (#) |
1 |
Accuracy (%) |
2.5 |
Dropout voltage (Vdo) (typ) (mV) |
600 |
Operating temperature range (°C) |
-40 to 125 |
HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

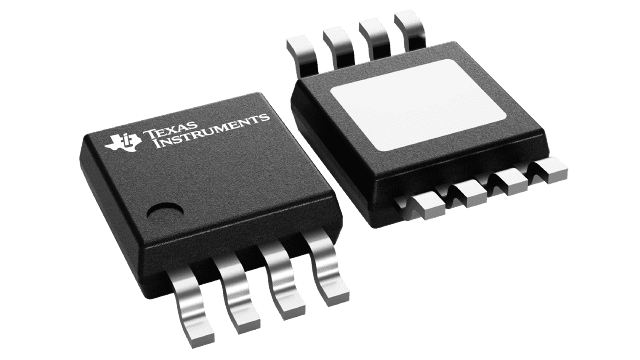

The TPS7A30 series of devices are negative, high-voltage (35 V), ultralow-noise (15.1 µVRMS, 72-dB PSRR) linear regulators that can source a maximum load of 200 mA.
These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power-management schemes. Other features include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions.
The TPS7A30 family is designed using bipolar technology, and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes the device an excellent choice to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry.
In addition, the TPS7A30 family of linear regulators is suitable for post dc-dc converter regulation. By filtering out the output voltage ripple inherent to dc-dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio, and RF applications.

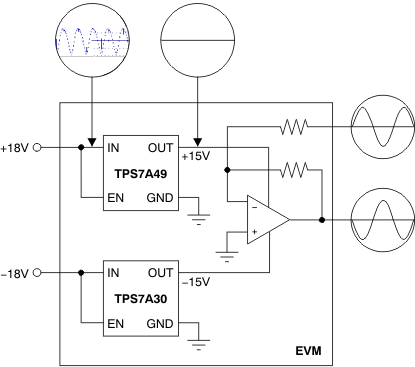

For applications that require positive and negative high-performance rails, consider TIs TPS7A49 family of positive high-voltage, ultralow-noise linear regulators.
