ACTIVE
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
IOL (max) (mA) |
8 |
Supply current (max) (µA) |
20 |
IOH (max) (mA) |
-8 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |

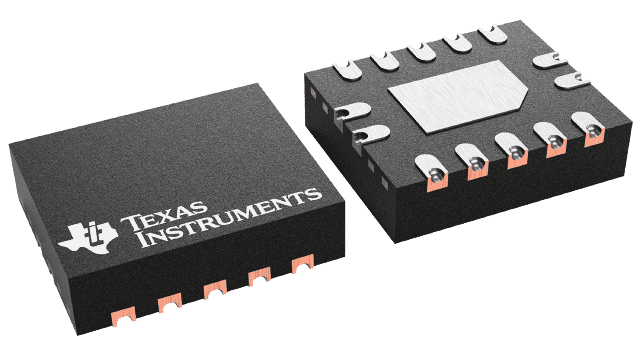

SOIC (D)-14-51.9 mm² 8.65 x 6

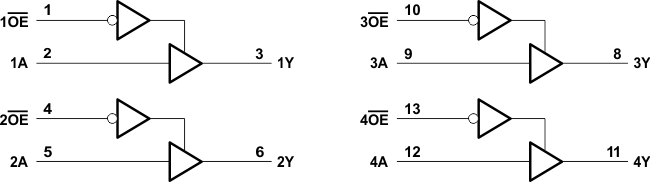

The SN74AHCT125-Q1 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high. When OE is low, the respective gate passes the data from the A input to its Y output.
To establish the high-impedance state during power up or power down, tiedown the OE to VCC through a pullup resistor; the current-sinking capability of the driver determines the minimum value of the resistor.
