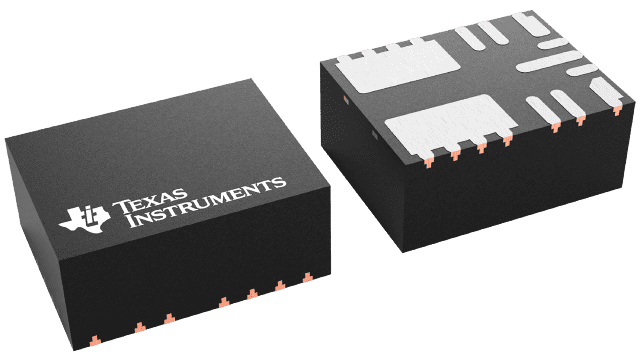

TPSM365R1
  • TPSM365R1
  • TPSM365R1

TPSM365R1

ACTIVE

3-V to 65-V input, 1-V to 15-V output, 0.1-A synchronous buck converter power module

Texas Instruments TPSM365R1 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Topology

Synchronous Buck

Iout (max) (A)

0.1

Vin (max) (V)

65

Vin (min) (V)

3

Vout (max) (V)

16

Vout (min) (V)

1

Features

EMI Tested, Enable, Frequency synchronization, Light load efficiency, Overcurrent protection, Power good, Spread Spectrum

EMI features

Integrated capacitors, Low parasitic Hotrod packaging, Spread Spectrum

Operating temperature range (°C)

-40 to 125

TI functional safety category

Functional Safety-Capable

Type

Module

Duty cycle (max) (%)

98

Control mode

Peak-Current

Switching frequency (min) (kHz)

200

Switching frequency (max) (kHz)

2200

Package

QFN-FCMOD (RDN)-11-15.75 mm² 4.5 x 3.5

Features

  • Functional Safety-Capable
  • Versatile synchronous buck DC/DC module:
    • Integrated MOSFETs, inductor, and controller
    • 3-V to 65-V wide input voltage range
    • Up to 70-V input transient
    • –40°C to +125°C junction temperature range
    • 4.5-mm × 3.5-mm × 2-mm overmolded package
    • Frequency adjustable from 200 kHz to 2.2 MHz using the RT pin
  • Optimized for ultra-low EMI requirements:
    • Pseudo-random spread spectrum reduces peak emissions
    • Pin selectable FPWM mode for constant frequency at light loads with MODE/SYNC pin
    • Frequency synchronization with MODE/SYNC pin
    • CISPR11 class B capable
  • Designed for scalable industrial power supplies:
  • Inherent protection features for robust design
    • Precision enable input and open-drain PGOOD indicator for control, sequencing, and V IN UVLO
    • Overcurrent and thermal shutdown protections
  • Create a custom design using the TLVM365R15 with the WEBENCH Power Designer
  • Functional Safety-Capable
  • Versatile synchronous buck DC/DC module:
    • Integrated MOSFETs, inductor, and controller
    • 3-V to 65-V wide input voltage range
    • Up to 70-V input transient
    • –40°C to +125°C junction temperature range
    • 4.5-mm × 3.5-mm × 2-mm overmolded package
    • Frequency adjustable from 200 kHz to 2.2 MHz using the RT pin
  • Optimized for ultra-low EMI requirements:
    • Pseudo-random spread spectrum reduces peak emissions
    • Pin selectable FPWM mode for constant frequency at light loads with MODE/SYNC pin
    • Frequency synchronization with MODE/SYNC pin
    • CISPR11 class B capable
  • Designed for scalable industrial power supplies:
  • Inherent protection features for robust design
    • Precision enable input and open-drain PGOOD indicator for control, sequencing, and V IN UVLO
    • Overcurrent and thermal shutdown protections
  • Create a custom design using the TLVM365R15 with the WEBENCH Power Designer

Description

The TPSM365R1 and TPSM365R15 are 65-V, 100-mA, and 150-mA synchronous step-down DC/DC power modules that combine power MOSFETs, integrated inductor, and boot capacitor in a compact and easy-to-use 3.5-mm × 4.5-mm × 2-mm, 11-pin QFN package. The small HotRod™ QFN package technology enhances the thermal performance and results in low EMI. The device features ultra-low operating I Q of 4 µA at no load (24 V IN to 3.3 V OUT). The TPSM365R1x support fixed 3.3-V and 5-V outputs, as well as adjustable output voltages ranging from 1 V to 16 V.

The TPSM365R1x use peak current mode control architecture with internal compensation to maintain stable operation with minimal output capacitance. With a resistor from the RT pin to ground, the switching frequency is programmed to operate at any desired point over a wide range from 200 kHz to 2.2 MHz. The precision EN/UVLO feature allows precise control of the device during the start-up and shutdown. The PGOOD flag, with built-in glitch filter and delayed release, offers a true indication of the system status, eliminating the requirement for an external voltage supervisor. The compact design size and rich feature set of TPSM365R1x simplifies implementation for a wide range of industrial applications.

The TPSM365R1 and TPSM365R15 are 65-V, 100-mA, and 150-mA synchronous step-down DC/DC power modules that combine power MOSFETs, integrated inductor, and boot capacitor in a compact and easy-to-use 3.5-mm × 4.5-mm × 2-mm, 11-pin QFN package. The small HotRod™ QFN package technology enhances the thermal performance and results in low EMI. The device features ultra-low operating I Q of 4 µA at no load (24 V IN to 3.3 V OUT). The TPSM365R1x support fixed 3.3-V and 5-V outputs, as well as adjustable output voltages ranging from 1 V to 16 V.

The TPSM365R1x use peak current mode control architecture with internal compensation to maintain stable operation with minimal output capacitance. With a resistor from the RT pin to ground, the switching frequency is programmed to operate at any desired point over a wide range from 200 kHz to 2.2 MHz. The precision EN/UVLO feature allows precise control of the device during the start-up and shutdown. The PGOOD flag, with built-in glitch filter and delayed release, offers a true indication of the system status, eliminating the requirement for an external voltage supervisor. The compact design size and rich feature set of TPSM365R1x simplifies implementation for a wide range of industrial applications.
