ACTIVE
Vabsmax_cont (V) |
7.5 |
Vin (max) (V) |
7 |
Vin (min) (V) |
1.5 |
Current limit (max) (A) |
7.5 |
Current limit (min) (A) |
0.5 |
Features |
Current monitoring, Overcurrent protection, Overvoltage protection, Reverse current blocking always, Soft-start, Thermal shutdown |
Overcurrent response |
Circuit breaker, Current limiting |
Fault response |
Auto-retry |
Ron (typ) (mΩ) |
20 |
Overvoltage response |
Cut-off |
Rating |
Space |
Soft start |
Adjustable |
Quiescent current (Iq) (typ) (A) |
0.0058 |
Quiescent current (Iq) (max) (A) |
0.008 |
Device type |
eFuses and hot swap controllers |
Operating temperature range (°C) |
-55 to 125 |
HTSSOP (DAP)-32-89.1 mm² 11 x 8.1

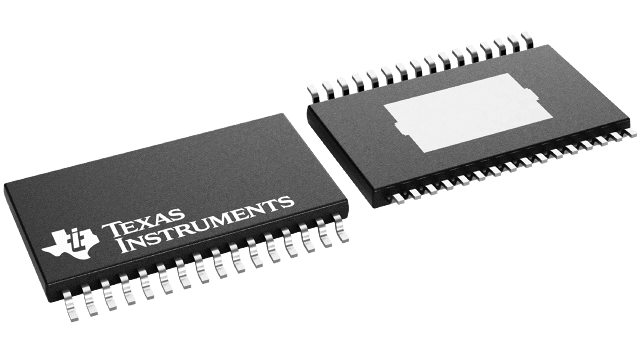

The TPS7H2201 is a single channel eFuse that provides configurable rise time to minimize inrush current and reverse current protection. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.5V to 7V and can support a maximum continuous current of 6A. The switch is controlled by an on and off input (EN), which is capable of interfacing directly with low-voltage control signals.
The TPS7H2201 is available in a ceramic and plastic package with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –55°C to 125°C.
