Sample rate (max) (Msps) |
550 |
Resolution (Bits) |
12 |
Number of input channels |
1 |
Interface type |
Parallel LVDS |
Analog input BW (MHz) |
2300 |
Features |
High Performance |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
2.2 |
Power consumption (typ) (mW) |
2250 |
Architecture |
Pipeline |
SNR (dB) |
65.4 |
ENOB (Bits) |
10.4 |
SFDR (dB) |
90 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
Yes |
HTQFP (PFP)-80-196 mm² 14 x 14
All trademarks are the property of their respective owners.

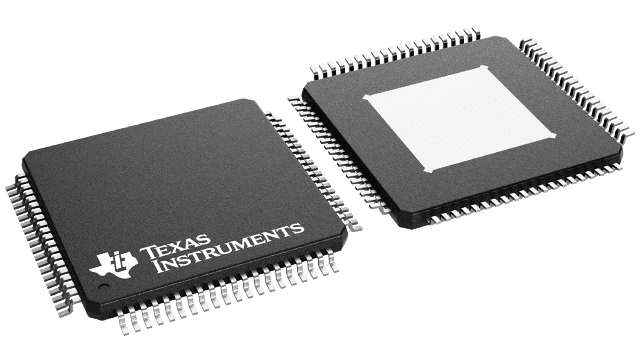

The ADS5463/ADS54RF63 is a 12-bit, 500-/550-MSPS analog-to-digital converter (ADC) that operates from both a 5-V supply and 3.3-V supply, while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, and 14-bit ADCs that operate from 210 MSPS to 550 MSPS. The ADS5463/ADS54RF63 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input.
The ADS54RF63 provides superior SFDR compared to the ADS5463 when the analog input frequency exceeds ~350 MHz or if operation up to 550 MSPS is required.
The ADS5463/ADS54RF63 is available in a TQFP-80 PowerPAD™ package. The ADS5463/ADS54RF63 is built on the Texas Instrument complementary bipolar process (BiCom3) and specified over the full industrial temperature range (-40°C to 85°C).
