TPS1H000-Q1

ACTIVE

40-V, 1-Ω, 1-ch automotive smart high-side switch with adjustable current limit

Texas Instruments TPS1H000-Q1 Product Info

1 April 2026 0

Parameters

Number of channels

1

Rating

Automotive

Operating voltage (max) (V)

40

Operating voltage (min) (V)

4

Ron (typ) (mΩ)

1000

Imax (A)

0.9

Current limit (max) (A)

1

Current limit (min) (A)

0.05

Current limit type

Adjustable

FET

Internal

Features

Digital output, Programmable current limit

Current limit accuracy

+/- 10% @ 0.15A

Operating temperature range (°C)

-40 to 125

Function

Adjustable current limit, Automotive load dump compatibility, Current monitoring, Inductive load compatibility, Inrush current control, Short circuit protection, Thermal shutdown

Package

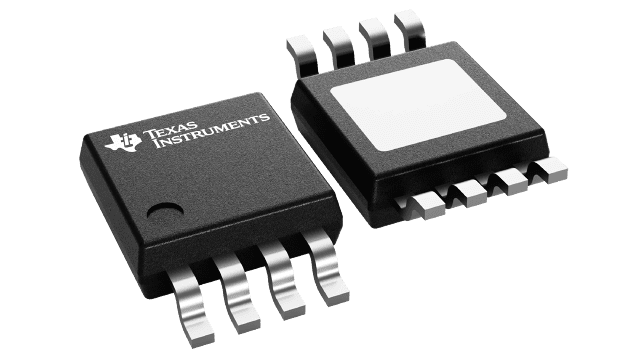

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

Features

  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to 125°C ambient operating temperature range
    • Device HBM ESD Classification Level H2
    • Device CDM ESD Classification Level C4B
  • Single-channel 1000mΩ smart high-side switch
  • Wide operating voltage: 3.4V to 40V
  • Low standby current: <500nA
  • Adjustable current limit with external resistor
    • ±15% When ≥150mA
    • ±10% When ≥300mA

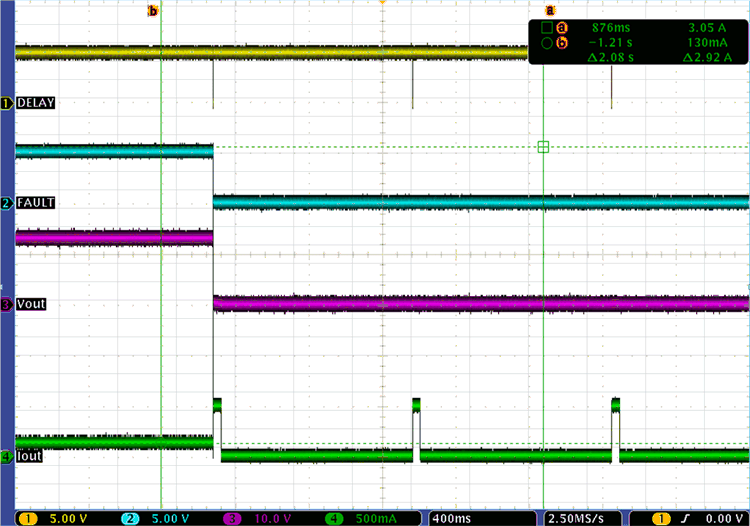

  • Configurable behavior after current limit
    • Holding mode
    • Latch-off mode with adjustable delay time
    • Auto-retry mode
  • Supports standalone operation without an MCU
  • Protection:
    • Short-to-GND and overload
    • Thermal shutdown and thermal swing
    • Negative voltage clamp for inductive loads
    • Loss-of-GND and loss-of-battery
  • Diagnostics:
    • Overload and short-to-GND detection
    • Open-load and short-to-battery detection in ON or OFF State
    • Thermal shutdown and thermal swing
  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to 125°C ambient operating temperature range
    • Device HBM ESD Classification Level H2
    • Device CDM ESD Classification Level C4B
  • Single-channel 1000mΩ smart high-side switch
  • Wide operating voltage: 3.4V to 40V
  • Low standby current: <500nA
  • Adjustable current limit with external resistor
    • ±15% When ≥150mA
    • ±10% When ≥300mA
  • Configurable behavior after current limit
    • Holding mode
    • Latch-off mode with adjustable delay time
    • Auto-retry mode
  • Supports standalone operation without an MCU
  • Protection:
    • Short-to-GND and overload
    • Thermal shutdown and thermal swing
    • Negative voltage clamp for inductive loads
    • Loss-of-GND and loss-of-battery
  • Diagnostics:
    • Overload and short-to-GND detection
    • Open-load and short-to-battery detection in ON or OFF State
    • Thermal shutdown and thermal swing

Description

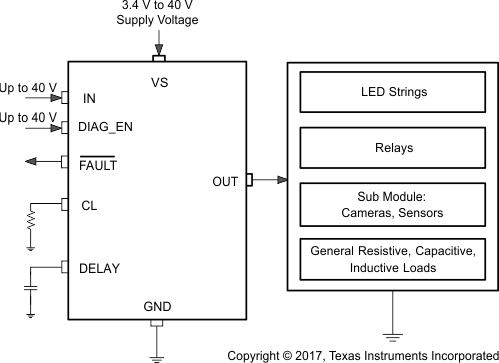

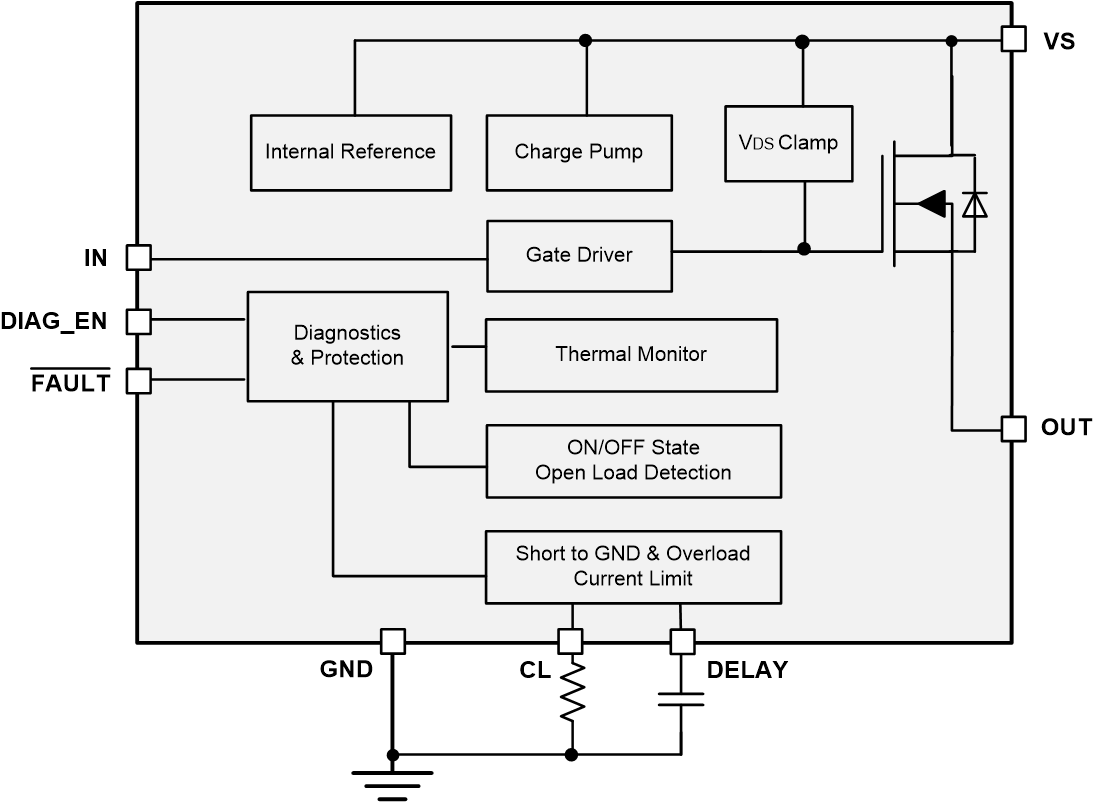

The TPS1H000-Q1 device is a fully protected single-channel high-side power switch with an integrated 1000mΩ NMOS power FET.

An adjustable current limit improves system reliability by limiting the inrush or overload current. The high accuracy of the current limit improves overload protection, simplifying the front-stage power design. Configurable features besides current limit provide design flexibility in the areas of functionality, cost, and thermal dissipation.

The device supports full diagnostics with the digital status output. Open-load detection is available in both the ON- and OFF-states. The device supports operation with or without an MCU. Standalone mode allows use of the device in isolated systems.

The TPS1H000-Q1 device is a fully protected single-channel high-side power switch with an integrated 1000mΩ NMOS power FET.

An adjustable current limit improves system reliability by limiting the inrush or overload current. The high accuracy of the current limit improves overload protection, simplifying the front-stage power design. Configurable features besides current limit provide design flexibility in the areas of functionality, cost, and thermal dissipation.

The device supports full diagnostics with the digital status output. Open-load detection is available in both the ON- and OFF-states. The device supports operation with or without an MCU. Standalone mode allows use of the device in isolated systems.
