ACTIVE
Rating |
Catalog |
Vin (max) (V) |
6 |
Vin (min) (V) |
1.2 |
Iout (max) (A) |
1.5 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
5.7 |
Vout (min) (V) |
0.9 |
Fixed output options (V) |
1.2 |
PSRR at 100 KHz (dB) |
42 |
Iq (typ) (mA) |
2 |
Thermal resistance θJA (°C/W) |
30 |
Load capacitance (min) (µF) |
2.2 |
Regulated outputs (#) |
1 |
Accuracy (%) |
2 |
Dropout voltage (Vdo) (typ) (mV) |
100 |
Operating temperature range (°C) |
-40 to 125 |
VSSOP (DGK)-8-14.7 mm² 3 x 4.9

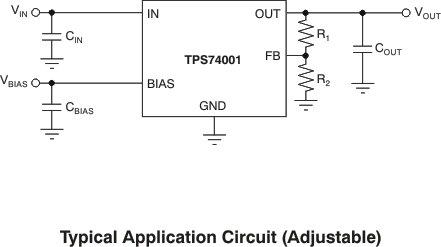

The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C.
