CSD18511KCS
  • CSD18511KCS
  • CSD18511KCS

CSD18511KCS

ACTIVE

40-V, N channel NexFET™ power MOSFET, single TO-220, 2.6 mOhm

Texas Instruments CSD18511KCS Product Info

1 April 2026 1

Parameters

VDS (V)

40

VGS (V)

20

Type

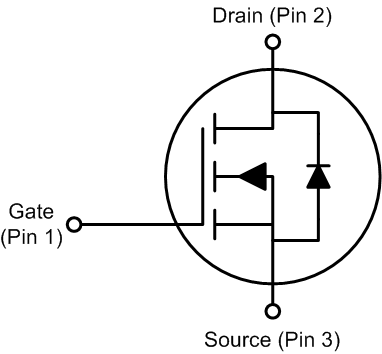

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

2.6

Rds(on) at VGS=4.5 V (max) (mΩ)

4.2

VGSTH typ (typ) (V)

1.8

QG (typ) (nC)

64

QGD (typ) (nC)

9.7

QGS (typ) (nC)

17.9

ID - silicon limited at TC=25°C (A)

194

ID - package limited (A)

110

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 175

Package

TO-220 (KCS)-3-46.228 mm² 10.16 x 4.55

Features

  • Low Qg and Qgd
  • Low RDS(ON)
  • Low-thermal resistance
  • Avalanche rated
  • Lead-free terminal plating
  • RoHS compliant
  • Halogen free

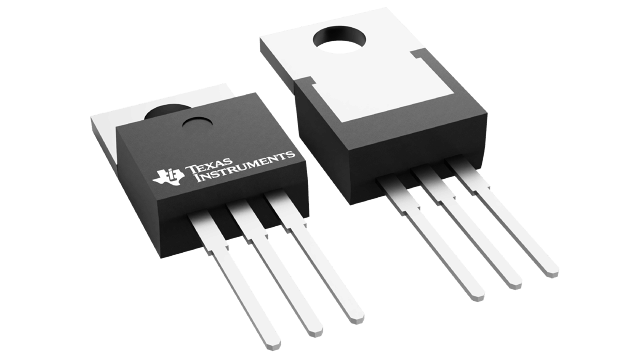

  • TO-220 plastic package
  • Low Qg and Qgd
  • Low RDS(ON)
  • Low-thermal resistance
  • Avalanche rated
  • Lead-free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package

Description

This 40V, 2.1mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 40V, 2.1mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
