Texas Instruments TPS735 Product Info

Parameters

Rating	Catalog
Vin (max) (V)	6.5
Vin (min) (V)	2.7
Iout (max) (A)	0.5
Output options	Adjustable Output, Fixed Output
Vout (max) (V)	6
Vout (min) (V)	1.2
Fixed output options (V)	1.2, 1.5, 2.5, 2.7, 2.85, 3.3, 3.4
Noise (µVrms)	16.5
PSRR at 100 KHz (dB)	28
Iq (typ) (mA)	0.045
Features	Enable
Thermal resistance θJA (°C/W)	52
Load capacitance (min) (µF)	2.2
Regulated outputs (#)	1
Accuracy (%)	2
Dropout voltage (Vdo) (typ) (mV)	280
Operating temperature range (°C)	-40 to 125

Package

VSON (DRB)-8-9 mm² 3 x 3

Features

Input Voltage: 2.7 V to 6.5 V
500-mA Low-Dropout Regulator With EN
Low I_Q: 45 µA
Multiple Output Voltage Versions Available:
- Fixed Outputs of 1.2 V to 4.3 V
- Adjustable Outputs from 1.25 V to 6 V
High PSRR: 68 dB at 1 kHz
Low Noise: 13.2 µV_RMS
Fast Start-Up Time: 45 µs
Stable With a Ceramic, 2.2-µF, Low-ESR Output Capacitor
Excellent Load and Line Transient Response
2% Overall Accuracy (Load, Line, and Temperature, V_OUT > 2.2 V)
Very Low Dropout: 280 mV at 500 mA
2-mm × 2-mm WSON-6 and
3-mm × 3-mm SON-8 Packages

Input Voltage: 2.7 V to 6.5 V
500-mA Low-Dropout Regulator With EN
Low I_Q: 45 µA
Multiple Output Voltage Versions Available:
- Fixed Outputs of 1.2 V to 4.3 V
- Adjustable Outputs from 1.25 V to 6 V
High PSRR: 68 dB at 1 kHz
Low Noise: 13.2 µV_RMS
Fast Start-Up Time: 45 µs
Stable With a Ceramic, 2.2-µF, Low-ESR Output Capacitor
Excellent Load and Line Transient Response
2% Overall Accuracy (Load, Line, and Temperature, V_OUT > 2.2 V)
Very Low Dropout: 280 mV at 500 mA
2-mm × 2-mm WSON-6 and
3-mm × 3-mm SON-8 Packages

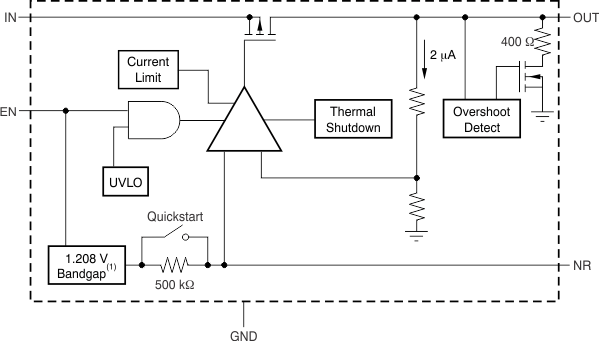

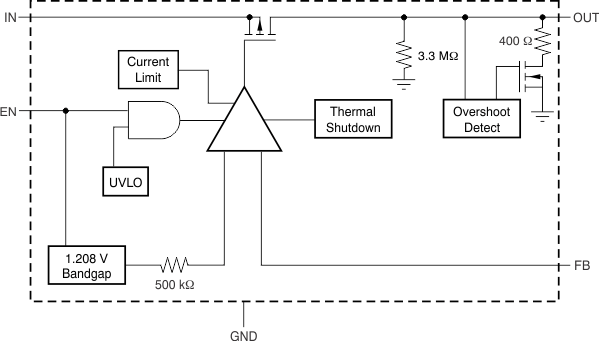

Description

The TPS735 low-dropout (LDO), low-power linear regulator offers excellent AC performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 45-µA (typical) ground current.

The TPS735 device is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500-mA output. The TPS735 device uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (V_OUT > 2.2 V) over all load, line, process, and temperature variations. This device is fully specified from T_J = –40°C to +125°C and is offered in a low-profile, 3 mm × 3 mm SON-8 package and a 2 mm × 2 mm WSON-6 package.

The TPS735 low-dropout (LDO), low-power linear regulator offers excellent AC performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 45-µA (typical) ground current.

The TPS735 device is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500-mA output. The TPS735 device uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (V_OUT > 2.2 V) over all load, line, process, and temperature variations. This device is fully specified from T_J = –40°C to +125°C and is offered in a low-profile, 3 mm × 3 mm SON-8 package and a 2 mm × 2 mm WSON-6 package.
