ACTIVE
Display type |
LCD unipolar |
IC integration |
Gamma buffer, LCD bias, VCOM |
Vin (min) (V) |
2.6 |
Vin (max) (V) |
6 |
Applications |
13 to 21 inches, 7 to 13 inches |
Source driver voltage (min) (V) |
7 |
Source driver voltage (max) (V) |
10.1 |
Level shifter/scan driver (Ch) |
0 |
Features |
Adjustable sequencing, GPM or GVS, Gamma buffer, I2C interface, Output discharge, Reset generator, Temperature sensor or compensation, VCOM or op amp |
Topology |
Boost, Buck |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

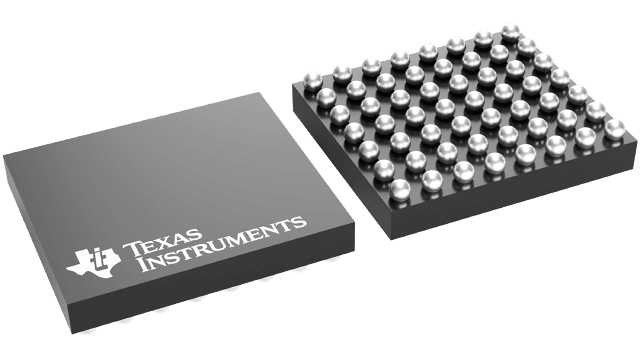

DSBGA (YFF)-56-10.7999999999999988 mm² 3 x 3.5999999999999996

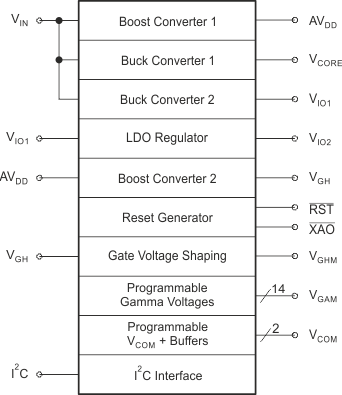

The TPS65642A device is a compact LCD bias solution primarily intended for use in notebook and tablet PCs. The device comprises two boost converters to supply the source driver and gate driver, or level shifter, of the LCD panel; two buck converters and a low-dropout (LDO) linear regulator to supply the system logic voltages; a programmable VCOM generator with two high-speed amplifiers; 14-channel gamma-voltage correction; and a gate-voltage shaping function.
