ACTIVE
Product type |
Camera sensor |
Regulated outputs (#) |
4 |
Step-down DC/DC converter |
3 |
LDO |
1 |
Vin (min) (V) |
4 |
Vin (max) (V) |
18.3 |
Vout (min) (V) |
0.9 |
Vout (max) (V) |
4 |
Iout (max) (A) |
1.5 |
Configurability |
Factory programmable, Software configurable, User programmable |
TI functional safety category |
Functional Safety-Compliant |
Features |
ASIL-B, I2C control, Overcurrent protection, Power good, Power sequencing, Spread-Spectrum Clock(SSC) Generation, Thermal shutdown, UVLO fixed |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (mA) |
0.1 |
Switching frequency (max) (kHz) |
2420 |
Switching frequency (typ) (kHz) |
2300 |
LDO Iout (typ) (A) |
0.3 |
Step-down DC/DC Iout (typ) (A) |
1.2, 1.2, 1.5 |

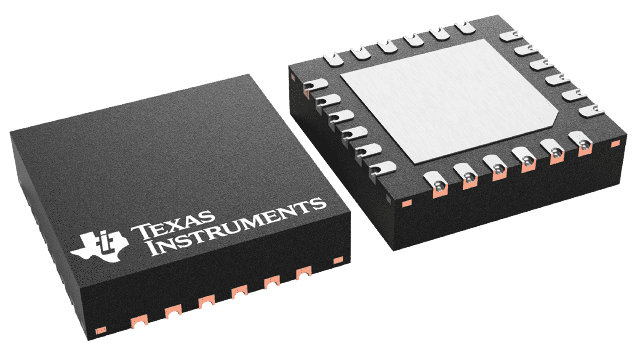

VQFN (RGE)-24-16 mm² 4 x 4

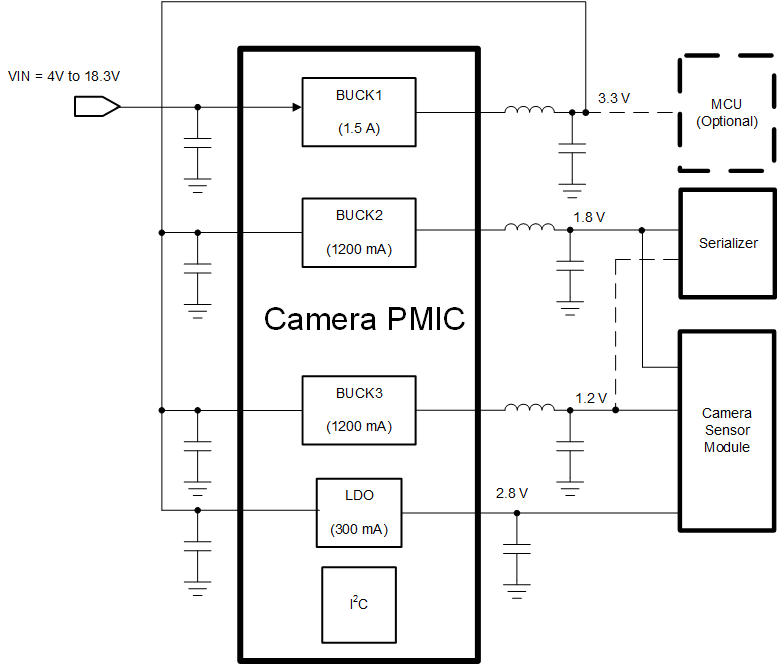

The TPS650333-Q1 device is a highly integrated power management IC for automotive camera modules. This device combines three step-down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 18.3 V for connections to power over coax (PoC). All converters operate in a forced fixed-frequency PWM mode. The LDO can supply 300 mA and operate with an input voltage range from 2.5 V to 5.5 V. The step-down converters and the LDO have separate voltage inputs that enable maximum design and sequencing flexibility.
The TPS650333-Q1 is available in a 24-pin VQFN package (4.00 mm × 4.00 mm).
