ACTIVE
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
6 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
20 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-14-51.9 mm² 8.65 x 6

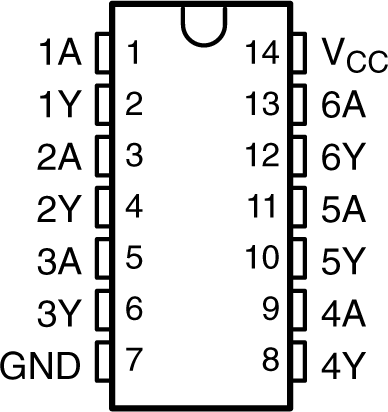

The SN74AHC04 contains six independent inverters. This device performs the Boolean function Y = A.
