ACTIVE
Rating |
Catalog |
Topology |
Buck, Multiphase, Step-Down Converter, Synchronous Buck |
Iout (max) (A) |
12 |
Vin (max) (V) |
6 |
Vin (min) (V) |
2.7 |
Vout (max) (V) |
3.35 |
Vout (min) (V) |
0.4 |
Switch current limit (typ) (A) |
20 |
Features |
Adaptive/Dynamic Voltage Scaling, Differential Remote Sense, Enable, Fixed Output, Forced PWM, Frequency synchronization, I2C/PMBus, Light Load Efficiency, Output discharge, Over Current Protection, Power good, Pre-Bias Start-Up, Soft Start Fixed, Spread Spectrum, Synchronous Rectification, UVLO Fixed, Wettable flanks package |
EMI features |
Frequency Dithering, Low parasitic Hotrod packaging, Spread Spectrum |
Control mode |
COT, Constant on-time (COT), DCS-Control |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.00175 |
Duty cycle (max) (%) |
75 |

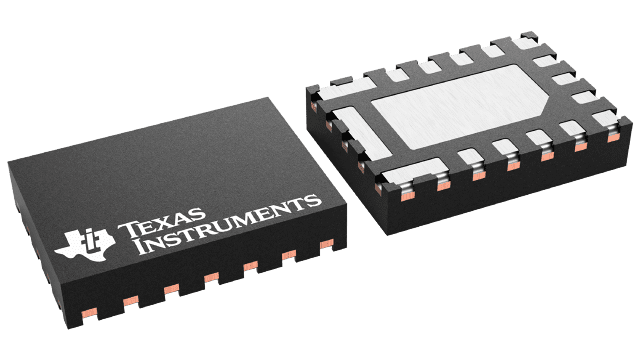

VQFN-FCRLF (RXS)-16-9.0525 mm² 2.55 x 3.55
The TPS6287x is a family of pin-to-pin 6A, 9A, 12A, and 15A synchronous step-down DC/DC converters with differential remote sensing. For each current rating, there are full-featured device variants with I2C interface and limited-featured device variants without I2C interface. All devices offer high efficiency and ease of use. Low-resistance power switches allow up to 15A continuous output current at high ambient temperatures.
The devices can operate in stacked mode to deliver higher output currents or to spread the power dissipation across multiple devices.
The TPS6287x family implements a fixed-frequency DCS-Control scheme that supports fast transients. The devices can operate in power save mode for maximum efficiency, or forced-PWM mode for the best transient performance and lowest output voltage ripple.
The remote sensing feature allows voltage regulation at the point-of-load, hence the device achieves better than ±1% DC voltage accuracy under all operating conditions.
The switching frequency is resistor-selectable through the FSEL pin. The switching frequency can be set to 1.5MHz, 2.25MHz, 2.5MHz, or 3.0MHz, or synchronized to an external clock in the same frequency range.
The I2C-compatible interface offers several control, monitoring, and warning features, such as voltage monitoring and temperature-related warnings. The output voltage can be quickly adjusted to adapt the power consumption of the load to the performance needs of the application through the I2C-compatible interface. The default start-up voltage is resistor-selectable through the VSEL pin.
