TPS2112A
  • TPS2112A
  • TPS2112A

TPS2112A

ACTIVE

2.8-V to 5.5-V, 120-mΩ, 0.75-A, power mux with automatic switchover and status output

Texas Instruments TPS2112A Product Info

1 April 2026 1

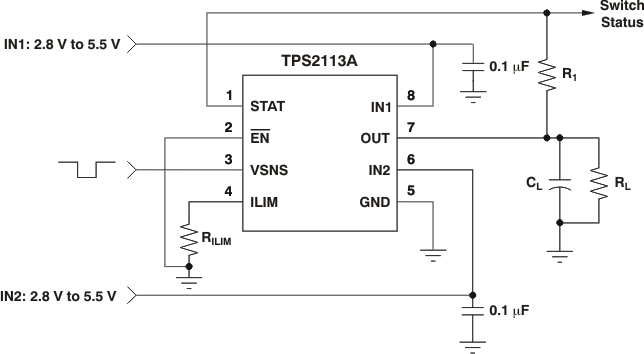

Parameters

Number of input channels

2

IN1, IN2 input voltage (max) (V)

5.5

IN1, IN2 input voltage (min) (V)

2.8

IN1 output current (max) (A)

0.75

IN2 output current (max) (A)

0.75

Quiescent current (Iq) (µA)

0.5

Imax (A)

0.75

Rating

Catalog

Features

Adjustable current limit, Inrush current control, Reverse current blocking, Thermal shutdown, Under voltage lock out

IN1 rDS(on) (typ) (mΩ)

120

IN2 rDS(on) (typ) (mΩ)

120

Operating temperature range (°C)

-40 to 85

FET

Internal

Device type

Power muxes

Function

Power good signal, Reverse current blocking, Thermal shutdown

Package

TSSOP (PW)-8-19.2 mm² 3 x 6.4

Features

  • Two-Input, One-Output Power Multiplexer with Low rDS(on) Switches:
    • 84 mΩ Typ (TPS2113A)
    • 120 mΩ Typ (TPS2112A)
  • Reverse and Cross-Conduction Blocking
  • Wide Operating Voltage: 2.8 V to 5.5 V
  • Low Standby Current: 0.5 µA Typ
  • Low Operating Current: 55 µA Typ
  • Adjustable Current Limit
  • Controlled Output Voltage Transition Time:
    • Limits Inrush Current
    • Minimizes Output Voltage Hold-Up Capacitance
  • CMOS- and TTL-Compatible Control Inputs
  • Auto-Switching Operating Mode
  • Thermal Shutdown
  • Available in TSSOP-8 and 3-mm × 3-mm SON-8 Packages
  • Two-Input, One-Output Power Multiplexer with Low rDS(on) Switches:
    • 84 mΩ Typ (TPS2113A)
    • 120 mΩ Typ (TPS2112A)
  • Reverse and Cross-Conduction Blocking
  • Wide Operating Voltage: 2.8 V to 5.5 V
  • Low Standby Current: 0.5 µA Typ
  • Low Operating Current: 55 µA Typ
  • Adjustable Current Limit
  • Controlled Output Voltage Transition Time:
    • Limits Inrush Current
    • Minimizes Output Voltage Hold-Up Capacitance
  • CMOS- and TTL-Compatible Control Inputs
  • Auto-Switching Operating Mode
  • Thermal Shutdown
  • Available in TSSOP-8 and 3-mm × 3-mm SON-8 Packages

Description

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
