ACTIVE
Number of input channels |
2 |
IN1, IN2 input voltage (max) (V) |
5.5 |
IN1, IN2 input voltage (min) (V) |
2.8 |
IN1 output current (max) (A) |
1.25, 2 |
IN2 output current (max) (A) |
1.25, 2 |
Quiescent current (Iq) (µA) |
0.5 |
Imax (A) |
1.25 |
Rating |
Catalog |
Features |
Adjustable current limit, Inrush current control, Power good, Reverse current blocking, Thermal shutdown |
IN1 rDS(on) (typ) (mΩ) |
84 |
IN2 rDS(on) (typ) (mΩ) |
84 |
Operating temperature range (°C) |
-40 to 85 |
FET |
Internal |
Device type |
Power muxes |
Function |
Power good signal, Reverse current blocking, Thermal shutdown |
TSSOP (PW)-8-19.2 mm² 3 x 6.4

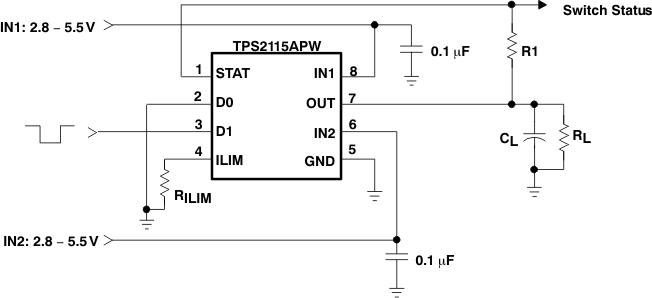

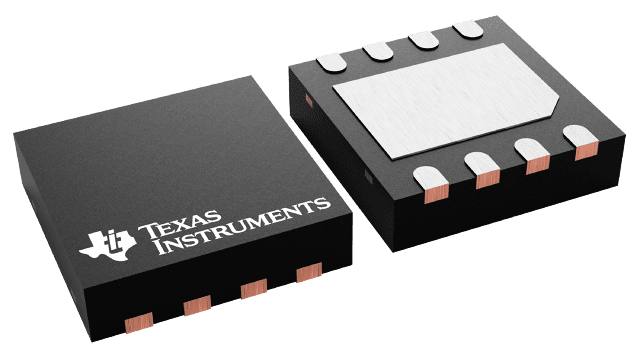

The TPS211xA family of power multiplexers enables seamless transition between two power supplies (such as a battery and a wall adapter), each operating at 2.8 V to 5.5 V and delivering up to 2 A, depending on package. The TPS211xA family includes extensive protection circuitry, including user-programmable current limiting, thermal protection, inrush current control, seamless supply transition, cross-conduction blocking, and reverse-conduction blocking. These features greatly simplify designing power multiplexer applications.
