ACTIVE
Rating |
Automotive |
Topology |
Buck |
Iout (max) (A) |
1 |
Vin (max) (V) |
36 |
Vin (min) (V) |
5.5 |
Vout (max) (V) |
31 |
Vout (min) (V) |
1.22 |
Features |
Enable, Fixed soft start, Overcurrent protection |
Control mode |
Voltage mode |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.003 |
Duty cycle (max) (%) |
89 |
SOIC (D)-8-29.4 mm² 4.9 x 6

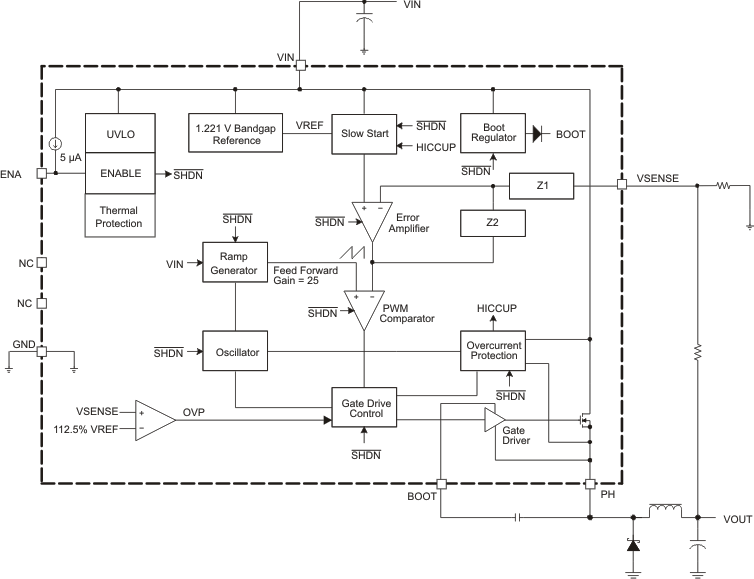

As a member of the SWIFT™ family of DC/DC regulators, the TPS5410 is a high-output-current PWM converter that integrates a low resistance high side N-channel MOSFET. Included on the substrate with the listed features is a high performance voltage error amplifier that provides tight voltage regulation accuracy under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 5.5V; an internally set slow-start circuit to limit inrush currents; and a voltage feed-forward circuit to improve the transient response. Using the ENA pin, shutdown supply current is reduced to 18µA typically. Other features include an active high enable, overcurrent limiting, overvoltage protection and thermal shutdown. To reduce design complexity and external component count, the TPS5410 feedback loop is internally compensated.
The TPS5410 device is available in an easy to use 8-pin SOIC package. TI provides evaluation modules and software tools to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.
