ACTIVE
Number of receivers |
4 |
Number of transmitters |
0 |
Duplex |
Half |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-10 to 15 |
Common-mode range (V) |
-7 to 12 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
70000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
PDIP (N)-16-181.42 mm² 19.3 x 9.4

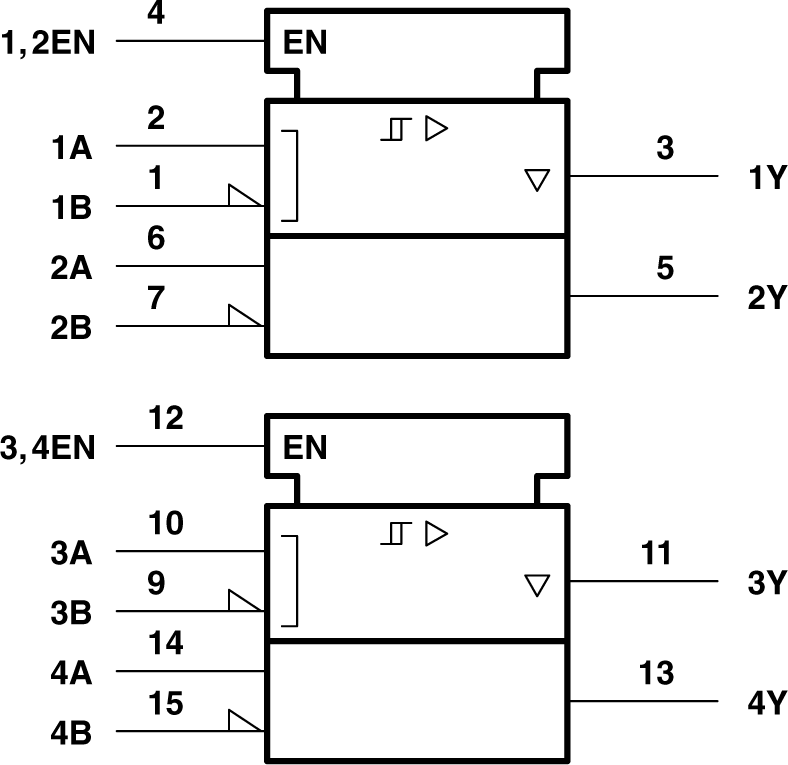

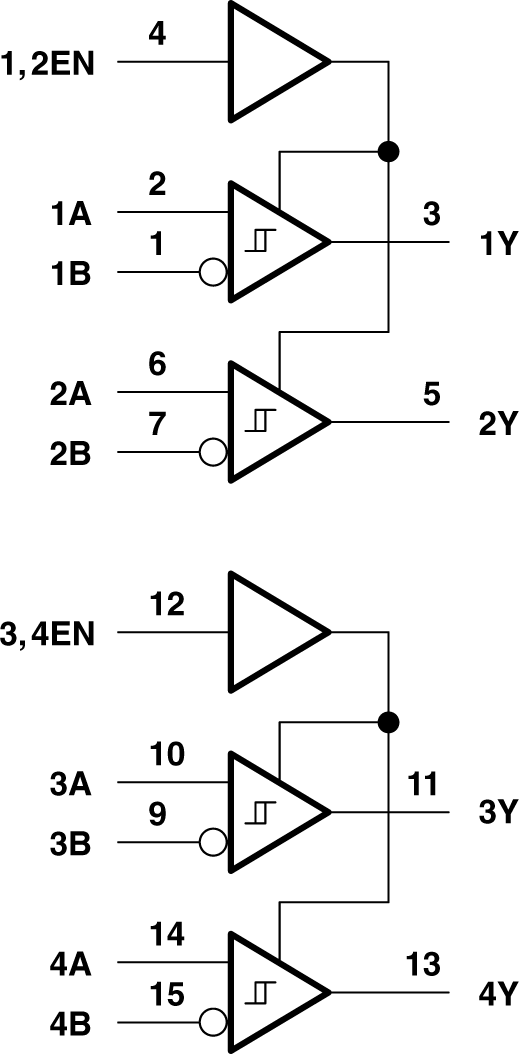

The SN65175 and SN75175 are monolithic quadruple differential line receivers with 3-state outputs. They are designed to meet the requirements of ANSI Standards EIA/TIA-422-B, RS-423-B, and RS-485, and several ITU recommendations. These standards are for balanced multipoint bus transmission at rates up to 10 megabits per second. Each of the two pairs of receivers has a common active-high enable.

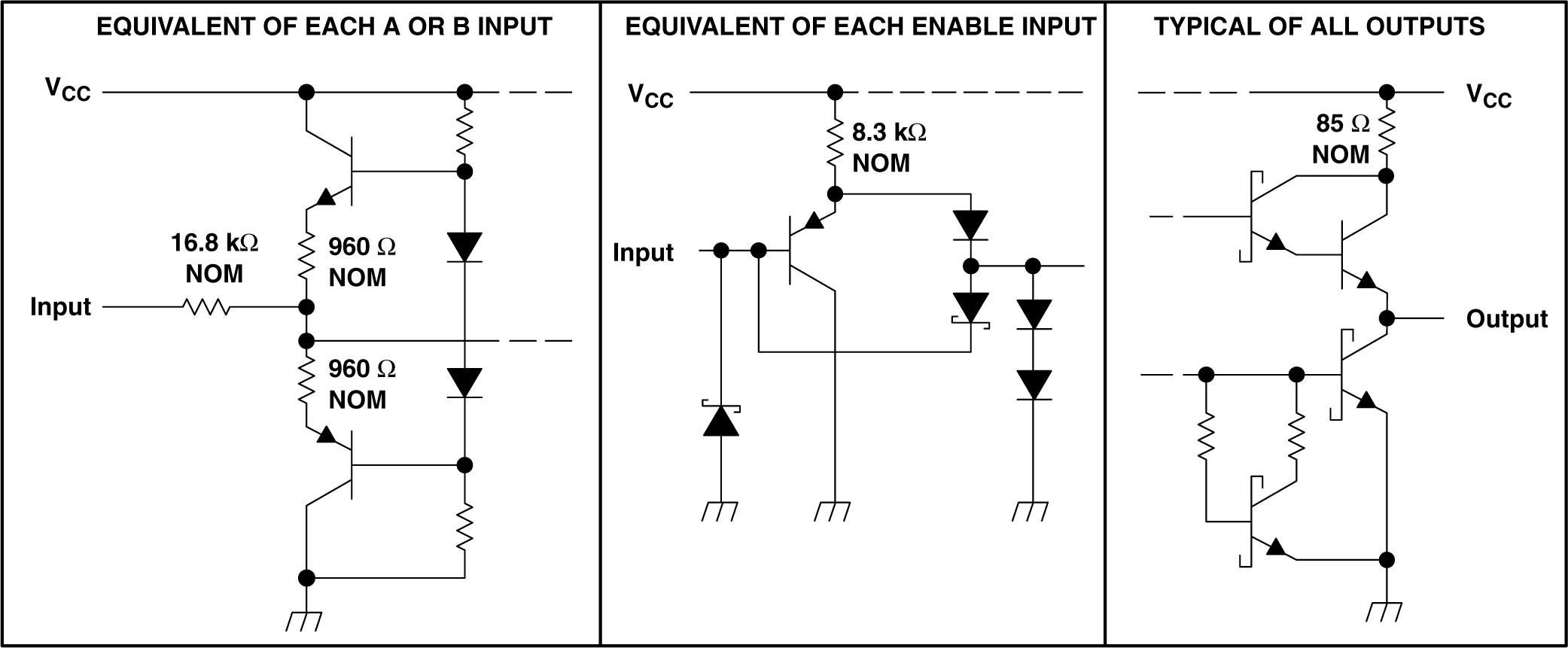

The receivers feature high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range of ±12 V. The SN65175 and SN75175 are designed for optimum performance when used with the SN75172 or SN75174 quadruple differential line drivers.
The SN65175 is characterized for operation from −40°C to 85°C. The SN75175 is characterized for operation from 0°C to 70°C.
