ACTIVE
Technology family |
LV-A |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
Inputs per channel |
2 |
IOL (max) (mA) |
12 |
IOH (max) (mA) |
-12 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
70 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-14-51.9 mm² 8.65 x 6

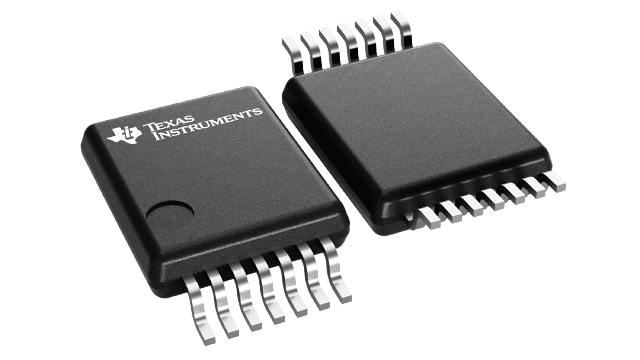

This quadruple 2-input positive-AND gate is designed for 2V to 5.5V VCC operation. The SN74LV08A device performs the Boolean function Y = A • B or Y = /A + /B in positive logic.
