ACTIVE
Bits (#) |
1 |
Data rate (max) (Mbps) |
100 |
Topology |
Push-Pull |
Direction control (typ) |
Fixed-direction |
Vin (min) (V) |
1.65 |
Vin (max) (V) |
3.6 |
Vout (min) (V) |
1.65 |
Vout (max) (V) |
3.6 |
Applications |
GPIO |
Features |
Partial power down (Ioff), Vcc isolation |
Prop delay (ns) |
20 |
Technology family |
2N |
Supply current (max) (mA) |
0.014 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
SOT-SC70 (DCK)-5-4.2 mm² 2 x 2.1

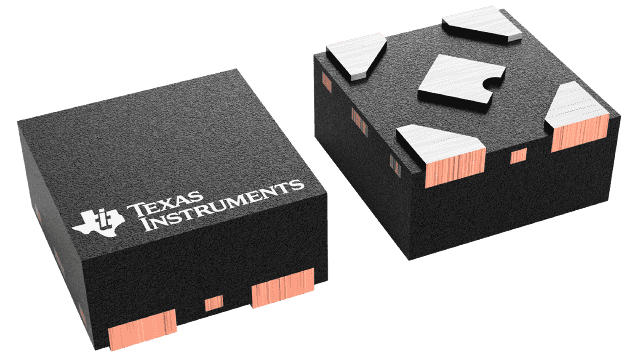

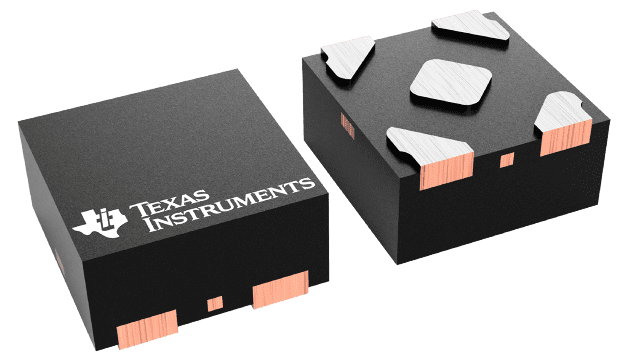

The 2N7001T is a single-bit buffered voltage signal converter that uses two separate configurable power-supply rails to up or down translate a unidirectional signal. The device is operational with both VCCA and VCCB supplies down to 1.65V and up to 3.60V. VCCA defines the input threshold voltage on the A input. VCCB defines the output drive voltage on the B output.
This device is fully specified for partial-power-down applications using the Ioff current. The Ioff protection circuitry ensures that no excessive current is drawn from or to an input, output, or combined I/O that is biased to a specific voltage while the device is powered down.
The VCC isolation feature ensures that if either VCCA or VCCB is less than 100 mV, the output port (B) enters a high-impedance state.
