TPS3899-Q1
  • TPS3899-Q1
  • TPS3899-Q1

TPS3899-Q1

ACTIVE

Automotive nanopower supervisor with programmable sense and reset delay

Texas Instruments TPS3899-Q1 Product Info

1 April 2026 2

Parameters

Rating

Automotive

Number of supplies monitored

1

Threshold voltage 1 (typ) (V)

0.505, 1.6, 3, 3.1, adjustable

Features

Detection time delay, Push-button, Reset time delay, Separate VDD & sense

Reset threshold accuracy (%)

2

Iq (typ) (mA)

0.000125

Output driver type/reset output

Active-high, Active-low, Open-drain, Push-Pull

Time delay (ms)

0.03, 0.05, 0.08, 0.3, 6.2, 30, 40, 300, 400, 619

Watchdog timer WDI (s)

None

Supply voltage (min) (V)

0.7

Supply voltage (max) (V)

6

TI functional safety category

Functional Safety-Capable

Operating temperature range (°C)

-40 to 125

Package

WSON (DSE)-6-2.25 mm² 1.5 x 1.5

Features

Qualified for automotive applications:

  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C ambient operating temperature
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C7B

Designed for high performance:

  • Nano quiescent current: 125nA (typical)
  • High threshold accuracy: ±0.5% (typical)
  • Built-in precision hysteresis (VHYS): 5% (typical)

Designed for a wide range of applications:

  • Operating voltage range:
    • 0.85V to 6V (DL and PL outputs)
    • 1V to 6V (PH output)
  • Adjustable threshold voltage: 0.505V (typical)
  • Precision voltage and push-button monitor
  • Programmable sense and reset delay
  • Fixed (VIT-) voltage: 0.8V to 5.4V in 0.1V steps

Multiple output topologies / Package type:

  • TPS3899DL-Q1: open-drain, active-low (RESET)
  • TPS3899PL-Q1: push-pull, active-low (RESET)
  • TPS3899PH-Q1: push-pull, active-high (RESET)
  • Package: 1.5mm × 1.5mm WSON (DSE)

Qualified for automotive applications:

  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C ambient operating temperature
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C7B

Designed for high performance:

  • Nano quiescent current: 125nA (typical)
  • High threshold accuracy: ±0.5% (typical)
  • Built-in precision hysteresis (VHYS): 5% (typical)

Designed for a wide range of applications:

  • Operating voltage range:
    • 0.85V to 6V (DL and PL outputs)
    • 1V to 6V (PH output)
  • Adjustable threshold voltage: 0.505V (typical)
  • Precision voltage and push-button monitor
  • Programmable sense and reset delay
  • Fixed (VIT-) voltage: 0.8V to 5.4V in 0.1V steps

Multiple output topologies / Package type:

  • TPS3899DL-Q1: open-drain, active-low (RESET)
  • TPS3899PL-Q1: push-pull, active-low (RESET)
  • TPS3899PH-Q1: push-pull, active-high (RESET)
  • Package: 1.5mm × 1.5mm WSON (DSE)

Description

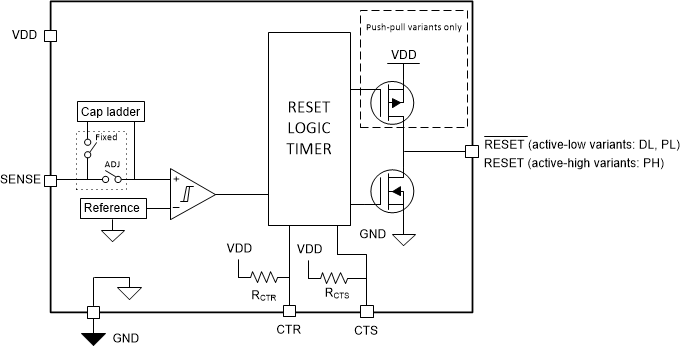

The separate VDD and SENSE pins allow for the redundancy sought by high-reliability systems. SENSE is decoupled from VDD and can monitor rail voltages other than VDD. Optional use of external resistors are supported by the high impedance input of the SENSE pin. Both CTS and CTR provide delay adjustability on the rising and falling edges of the RESET signals. CTS also functions as a debouncer by ignoring voltage glitches on the monitored voltage rails and operates as a "manual reset" that can be used to force a system reset.

The precision performance, best in-class features in a compact form factor, makes the TPS3899-Q1 an ideal solution for wide ranging automotive and battery-powered / low-power applications. The device is fully specified over a temperature range of –40°C to +125°C (TA).
