TPS38700-Q1
  • TPS38700-Q1
  • TPS38700-Q1

TPS38700-Q1

ACTIVE

Automotive power-supply sequencer with I²C support for up to 12 channels

Texas Instruments TPS38700-Q1 Product Info

1 April 2026 1

Parameters

Number of supplies monitored

12

Number of sequenced outputs

12

Rating

Automotive

Supply voltage (max) (V)

5.5

Supply voltage (min) (V)

2

Iq (typ) (mA)

0.05

Operating temperature range (°C)

-40 to 125

Package

VQFN (RGE)-24-16 mm² 4 x 4

Features

  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C7B
  • Functional Safety - Compliant
    • Developed for functional safety applications
    • Documentation to aid ISO 26262 system design is available upon request
    • Systematic capability up to ASIL D
    • Hardware capability up to ASIL B
  • Input voltage range: 2.2V to 5.5V
  • Undervoltage lockout (UVLO): 2.0V
  • Low quiescent current: 35µA (typical)
  • Window watchdog
  • Independent RESET
  • Independent NIRQ
  • NVM error check
    • 1-bit error correction
    • 2-bit error detection
  • CRC error check on register maps
  • Battery backup
  • Crystal oscillator option
  • I2C programmable sequence
  • RTC clock alarm function
  • Designed to be used with multichannel supervisors like TPS389006/TPS389008 and for full multi-channel monitoring & sequencing situations
  • Qualified for automotive applications
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 1: –40°C to +125°C
    • Device HBM ESD classification level 2
    • Device CDM ESD classification level C7B
  • Functional Safety - Compliant
    • Developed for functional safety applications
    • Documentation to aid ISO 26262 system design is available upon request
    • Systematic capability up to ASIL D
    • Hardware capability up to ASIL B
  • Input voltage range: 2.2V to 5.5V
  • Undervoltage lockout (UVLO): 2.0V
  • Low quiescent current: 35µA (typical)
  • Window watchdog
  • Independent RESET
  • Independent NIRQ
  • NVM error check
    • 1-bit error correction
    • 2-bit error detection
  • CRC error check on register maps
  • Battery backup
  • Crystal oscillator option
  • I2C programmable sequence
  • RTC clock alarm function
  • Designed to be used with multichannel supervisors like TPS389006/TPS389008 and for full multi-channel monitoring & sequencing situations

Description

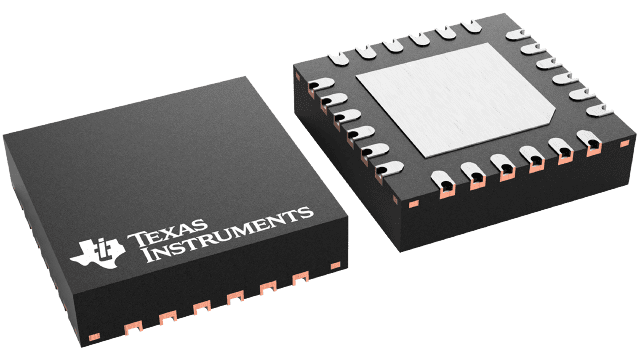

The TPS38700-Q1 device is an integrated multichannel voltage sequencer with a window watchdog and I2C programmable in a 24-pin 4mm x 4mm VQFN package.

This multichannel voltage sequencer is designed for systems that require precise power up and/or power down sequencing and can be interfaced with multichannel voltage supervisors. The device defaults to preprogrammed OTP options but the I2C can reprogram the power up and power down sequence, watchdog settings, and sequence timing options if needed.

Flexible and programmable voltage rail sequencing capabilities, low quiescent current, and small footprint allow this device to meet most application requirements. TPS38700 is designed to be used along with monitoring parts like TPS389006/TPS3890008.

The TPS38700-Q1 device is an integrated multichannel voltage sequencer with a window watchdog and I2C programmable in a 24-pin 4mm x 4mm VQFN package.

This multichannel voltage sequencer is designed for systems that require precise power up and/or power down sequencing and can be interfaced with multichannel voltage supervisors. The device defaults to preprogrammed OTP options but the I2C can reprogram the power up and power down sequence, watchdog settings, and sequence timing options if needed.

Flexible and programmable voltage rail sequencing capabilities, low quiescent current, and small footprint allow this device to meet most application requirements. TPS38700 is designed to be used along with monitoring parts like TPS389006/TPS3890008.
