Texas Instruments TPS25944A Product Info

Parameters

Vabsmax_cont (V)	20
Vin (max) (V)	18
Vin (min) (V)	2.7
Current limit (max) (A)	5.2
Current limit (min) (A)	0.6
Features	Adjustable current limit, Adjustable soft start, Current monitoring, Fault output, Overcurrent protection, Overvoltage protection, Power good signal, Reverse current blocking always, Short-circuit protection, Thermal shutdown
UL recognition	UL2367, UL60950
Overcurrent response	Circuit breaker
Fault response	Auto-retry
Ron (typ) (mΩ)	42
Overvoltage response	Cut-off
Rating	Catalog
Soft start	Adjustable
Quiescent current (Iq) (typ) (A)	0.000199
Quiescent current (Iq) (max) (A)	0.00026
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 125

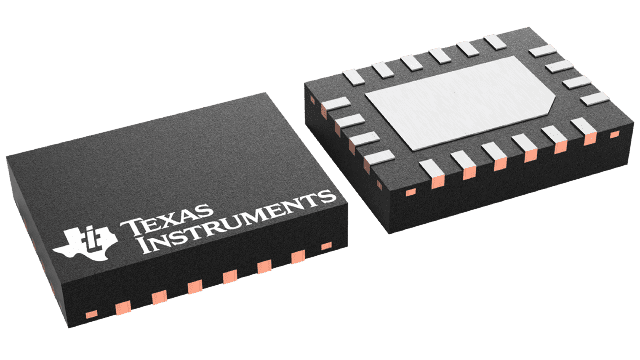

Package

WQFN (RVC)-20-12 mm² 4 x 3

Features

2.7 V to 18 V Operating Voltage, 20 V (Maximum)
42-mΩ R_ON (Typical)
0.6 A to 5.3 A Adjustable Current Limit (±8%)
IMON Current Indicator Output (±8%)
200-µA Operating I_Q (Typical)
15-µA Disabled I_Q (Typical)
±2% Overvoltage, Undervoltage Thresholds
Reverse Current Blocking
1-µs Reverse Voltage Shutoff
Programmable dV_o/dt Control
Power Good and Fault Outputs
Two Overcurrent Fault Response Options
- TPS25942: I_(LIMIT) with Thermal Shutdown
- TPS25944: 4 ms Fault Timer then Shutoff
–40°C to +125°C Junction Temperature Range
UL 2367 Recognized
- File No. 169910
- R_ILIM ≥ 20 kΩ (4.81 A Maximum)
UL60950 Safe during Single Point Failure
- Open-Short ILIM detection

2.7 V to 18 V Operating Voltage, 20 V (Maximum)
42-mΩ R_ON (Typical)
0.6 A to 5.3 A Adjustable Current Limit (±8%)
IMON Current Indicator Output (±8%)
200-µA Operating I_Q (Typical)
15-µA Disabled I_Q (Typical)
±2% Overvoltage, Undervoltage Thresholds
Reverse Current Blocking
1-µs Reverse Voltage Shutoff
Programmable dV_o/dt Control
Power Good and Fault Outputs
Two Overcurrent Fault Response Options
- TPS25942: I_(LIMIT) with Thermal Shutdown
- TPS25944: 4 ms Fault Timer then Shutoff
–40°C to +125°C Junction Temperature Range
UL 2367 Recognized
- File No. 169910
- R_ILIM ≥ 20 kΩ (4.81 A Maximum)
UL60950 Safe during Single Point Failure
- Open-Short ILIM detection

Description

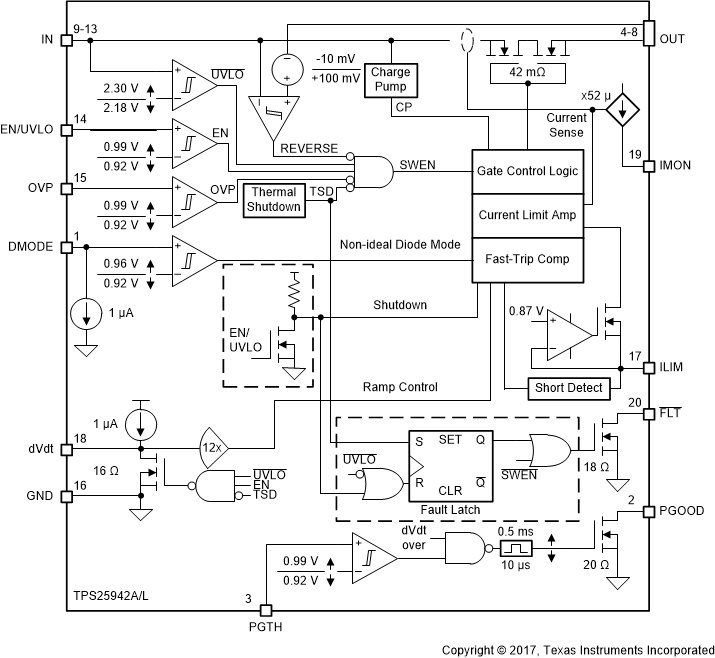

The TPS25942, TPS25944 eFuse Power MUX is a compact, feature rich power management device with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for power muxing and systems with multiple power sources.

Load, source and device protection are provided with many programmable features. Thresholds for undervoltage, overvoltage, overcurrent, dV_o/dt ramp rate, power good, and in-rush current protection are all programmable to suit specific system requirements. For system status monitoring and downstream load control, the device provides PGOOD, FLT and precise current monitor output.

The TPS25942, TPS25944 monitor V_(IN) and V_(OUT) to provide true reverse blocking from output when V_(IN) < (V_(OUT) – 10 mV). The device can be configured to assign Main/Auxiliary supply priority using the FLT and DMODE pins.

The TPS25942, TPS25944 eFuse Power MUX is a compact, feature rich power management device with a full suite of protection functions. The wide operating range allows control of many popular DC bus voltages. Integrated back-to-back FETs provide bidirectional current control making the device well suited for power muxing and systems with multiple power sources.

Load, source and device protection are provided with many programmable features. Thresholds for undervoltage, overvoltage, overcurrent, dV_o/dt ramp rate, power good, and in-rush current protection are all programmable to suit specific system requirements. For system status monitoring and downstream load control, the device provides PGOOD, FLT and precise current monitor output.

The TPS25942, TPS25944 monitor V_(IN) and V_(OUT) to provide true reverse blocking from output when V_(IN) < (V_(OUT) – 10 mV). The device can be configured to assign Main/Auxiliary supply priority using the FLT and DMODE pins.
