ACTIVE
Architecture |
FET / CMOS Input, Voltage FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
GBW (typ) (MHz) |
100 |
BW at Acl (MHz) |
200 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
150 |
Vn at flatband (typ) (nV√Hz) |
7.5 |
Vn at 1 kHz (typ) (nV√Hz) |
7.5 |
Iq per channel (typ) (mA) |
5.2 |
Vos (offset voltage at 25°C) (max) (mV) |
10 |
Rail-to-rail |
In, Out |
Features |
EMI Hardened |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
CMRR (typ) (dB) |
80 |
Input bias current (max) (pA) |
20 |
Offset drift (typ) (µV/°C) |
4.5 |
Iout (typ) (mA) |
100 |
2nd harmonic (dBc) |
-75 |
3rd harmonic (dBc) |
-83 |
Frequency of harmonic distortion measurement (MHz) |
1 |
SOIC (D)-8-29.4 mm² 4.9 x 6

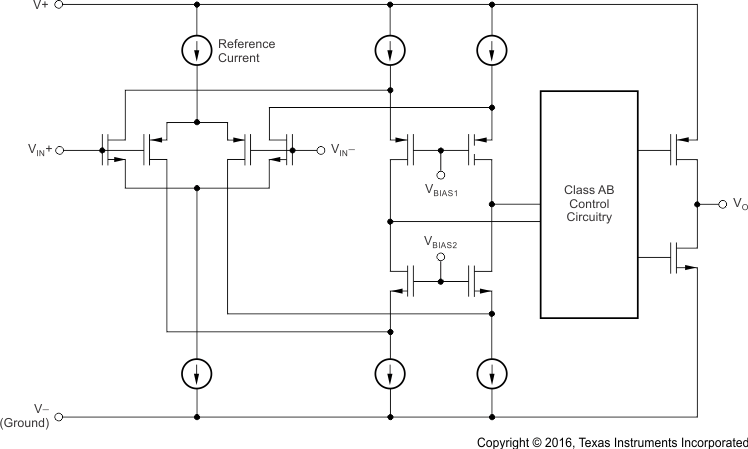

The TLV3541, TLV3542 and TLV3544 are single-, dual-, and quad-channel, low-power (5.2-mA per channel), high-speed, unity-gain stable, rail-to-rail input/output operational amplifiers (op amps) designed for video and other applications that require wide bandwidth.
Consuming only 6.5 mA (maximum) of supply current, these devices feature 200-MHz gain-bandwidth product, 150-V/µs slew rate, and a low 7.5 nV/√Hz of input noise at f = 1 MHz. The combination of high bandwidth, high slew rate, and low noise make the TLV354x family suitable for low voltage, high-speed signal conditioning systems.
The TLV354x series of op amps are optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, and supports a wide dynamic range.
The TLV354x devices are specified from –40°C to +125°C. The TLV354x family can be used as a plug-in replacement for many commercially available wide bandwidth op amps.
