0
ACTIVE
Vabsmax_cont (V) |
-200 |
Vin (max) (V) |
-10 |
Vin (min) (V) |
-80 |
Current limit (min) (A) |
0.01 |
Features |
Adjustable current limit, Adjustable soft start, Fault output, Overcurrent protection, Overvoltage protection, Power good signal, adjustable UVLO |
Overcurrent response |
Circuit breaker, Current limiting |
Fault response |
Auto-retry |
Overvoltage response |
Cut-off |
Rating |
Catalog |
Soft start |
Adjustable |
Quiescent current (Iq) (typ) (A) |
0.001 |
Quiescent current (Iq) (max) (A) |
0.001 |
Device type |
eFuses and hot swap controllers |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-16-32 mm² 5 x 6.4

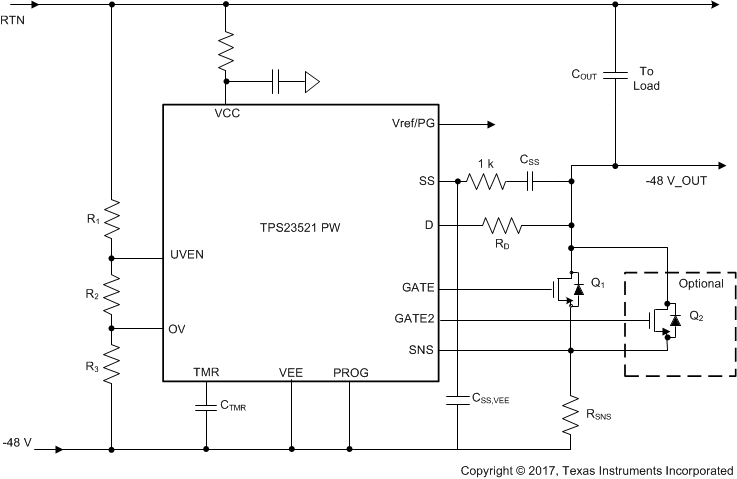

The TPS23521 is a high performance hot swap that enables high power telecom systems to comply with stringent transient requirements. The 200-V absolute maximum rating makes it easier to survive lightning surge tests (IEC61000-4-5). The soft start cap disconnect allows for the use of smaller hot swap FETs by limiting the inrush current, without hurting the transient response. The dual hot swap gate driver saves space and BOM cost in high power applications that require multiple hot swap FETs.The 400-µA sourcing current allows fast recovery, which helps to avoid system resets during lightning surge tests. The dual current limit makes it easier to pass brown outs and input steps such as required by the ATIS 0600315.2013. Finally, it offers accurate undervoltage and overvoltage protection with programmable thresholds and hysteresis.
