0
ACTIVE
Rating |
Catalog |
Operating temperature range (°C) |
to |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

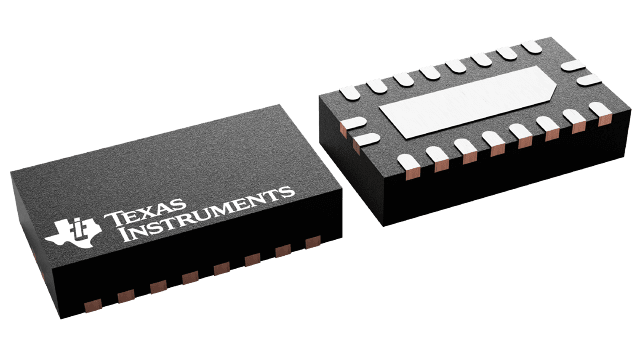

The SN74AHCT3G99 device contains three independent configurable logic gates with 3-state outputs. Each gate has four inputs and performs the Boolean function Y = (A • C + B • C) ⊕ D. All inputs include Schmitt-triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals. The user can choose logic functions, such as MUX, AND, OR, NAND, NOR, XOR, XNOR, inverter, and buffer by connecting the inputs A, B, C, and D appropriately.
