Texas Instruments TPS22960 Product Info

Parameters

Imax (A)	0.5
Vin (max) (V)	5.5
Vin (min) (V)	1.62
Number of channels	2
Features	Inrush current control, Quick output discharge
Quiescent current (Iq) (typ) (µA)	0.35
Soft start	Adjustable Rise Time
Rating	Catalog
Ron (typ) (mΩ)	435
Shutdown current (ISD) (typ) (µA)	0.25
Current limit type	None
Function	Inrush current control
FET	Internal
Operating temperature range (°C)	-40 to 85
Device type	Load switches

Package

SOT-23 (DCN)-8-4.64 mm² 2.9 x 1.6

Features

Integrated dual-load switch
Input voltage range: 1.62V to 5.5V
Low ON-state resistance
- rON = 342mΩ at VIN = 5.5V
- rON = 435mΩ at VIN = 3.3V
- rON = 523mΩ at VIN = 2.5V
- rON = 737mΩ at VIN = 1.8V
500mA maximum continuous switch current
Low quiescent current and shutdown current
Controlled switch output rise time: 75µs or 660µs
Integrated quick output discharge transistor
ESD performance tested per JESD 22
- 2000V human body model (A114-B, Class II)
- 1000V charged-device model (C101)

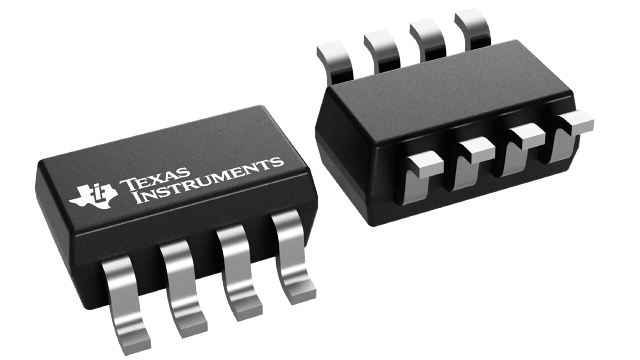

8-pin SOT (DCN) package: 3mm × 3mm

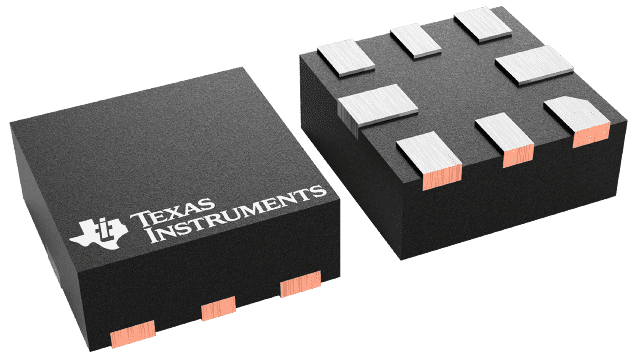

8-pin UQFN (RSE) package: 1.5mm × 1.5mm

Integrated dual-load switch
Input voltage range: 1.62V to 5.5V
Low ON-state resistance
- rON = 342mΩ at VIN = 5.5V
- rON = 435mΩ at VIN = 3.3V
- rON = 523mΩ at VIN = 2.5V
- rON = 737mΩ at VIN = 1.8V
500mA maximum continuous switch current
Low quiescent current and shutdown current
Controlled switch output rise time: 75µs or 660µs
Integrated quick output discharge transistor
ESD performance tested per JESD 22
- 2000V human body model (A114-B, Class II)
- 1000V charged-device model (C101)
8-pin SOT (DCN) package: 3mm × 3mm
8-pin UQFN (RSE) package: 1.5mm × 1.5mm

Description

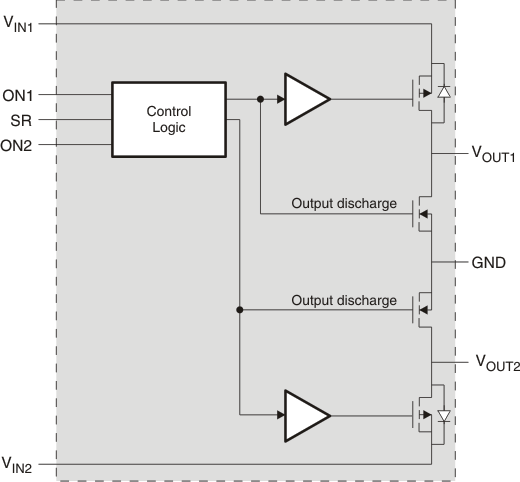

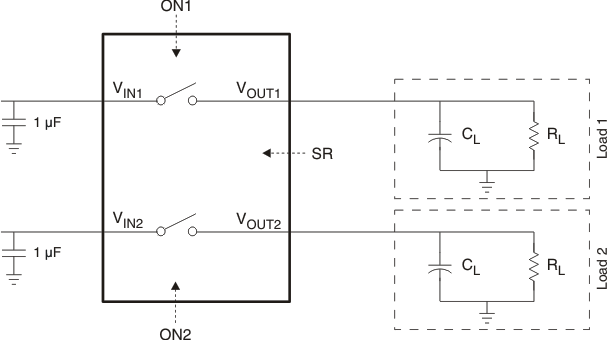

The TPS22960 is a small low-rON dual-channel load switch with controlled turnon. The devices contain two P-channel MOSFETs that can operate over an input voltage range of 1.62V to 5.5V. Each switch is independently controlled by on/off inputs (ON1 and ON2), which are capable of interfacing directly with low-voltage control signals. In TPS22960 a 85Ω on-chip load resistor is added for quick discharge when the switch is turned off.

The rise time (slew-rate) of the device is internally controlled in order to avoid inrush current, and it can be slowed down if needed using the SR pin: at 3.3V, TPS22960 features a 75µs rise time with the SR pin tied to ground and 660µs with the SR pin tied to high.

The TPS22960 is available in a space-saving 8-pin UQFN package and in an 8-pin SOT package. It is characterized for operation over the free-air temperature range of –40°C to 85°C.

The TPS22960 is a small low-rON dual-channel load switch with controlled turnon. The devices contain two P-channel MOSFETs that can operate over an input voltage range of 1.62V to 5.5V. Each switch is independently controlled by on/off inputs (ON1 and ON2), which are capable of interfacing directly with low-voltage control signals. In TPS22960 a 85Ω on-chip load resistor is added for quick discharge when the switch is turned off.

The rise time (slew-rate) of the device is internally controlled in order to avoid inrush current, and it can be slowed down if needed using the SR pin: at 3.3V, TPS22960 features a 75µs rise time with the SR pin tied to ground and 660µs with the SR pin tied to high.

The TPS22960 is available in a space-saving 8-pin UQFN package and in an 8-pin SOT package. It is characterized for operation over the free-air temperature range of –40°C to 85°C.
