SN65LBC179
  • SN65LBC179
  • SN65LBC179
  • SN65LBC179

SN65LBC179

ACTIVE

Low-Power Differential Line Driver And Receiver Pair

Texas Instruments SN65LBC179 Product Info

1 April 2026 0

Parameters

Number of receivers

1

Number of transmitters

1

Duplex

Full

Supply voltage (nom) (V)

5

Signaling rate (max) (Mbps)

10

Fault protection (V)

-10 to 15

Common-mode range (V)

-7 to 12

Number of nodes

32

Isolated

No

Supply current (max) (µA)

5000

Rating

Automotive, Catalog

Operating temperature range (°C)

-40 to 125

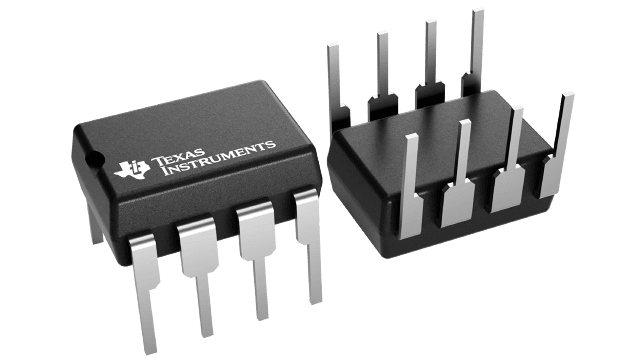

Package

PDIP (P)-8-92.5083 mm² 9.81 x 9.43

Features

  • Designed for high-speed multipoint data transmission over long cables
  • Operates with pulse widths as low as 30 ns
  • Low supply current: 5 mA max
  • Meets or exceeds the standard requirementsof ANSI RS-485 and ISO 8482:1987(E)
  • Common-mode voltage range of − 7 V to 12 V
  • Positive-and negative-output current limiting
  • Driver thermal shutdown protection
  • Pin compatible with the SN75179B
  • Designed for high-speed multipoint data transmission over long cables
  • Operates with pulse widths as low as 30 ns
  • Low supply current: 5 mA max
  • Meets or exceeds the standard requirementsof ANSI RS-485 and ISO 8482:1987(E)
  • Common-mode voltage range of − 7 V to 12 V
  • Positive-and negative-output current limiting
  • Driver thermal shutdown protection
  • Pin compatible with the SN75179B

Description

SN65LBC179:Low-Power Differential Line Driver And Receiver Pair.Package:PDIP (P)-8-92.5083 mm² 9.81 x 9.43
