ACTIVE
Product type |
Fixed current limit, Power switch |
Rating |
Catalog |
Continuous current (max) (A) |
1 |
Current limit (A) |
1.5 |
Number of switches |
2 |
Enable |
Active High |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.7 |
Operating temperature range (°C) |
-40 to 125 |
Current limit accuracy at 1 A |
0.27 |

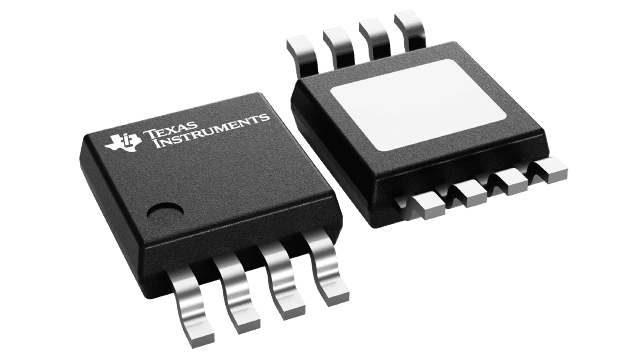

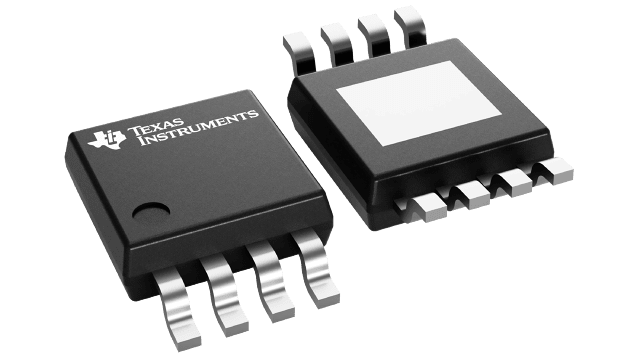

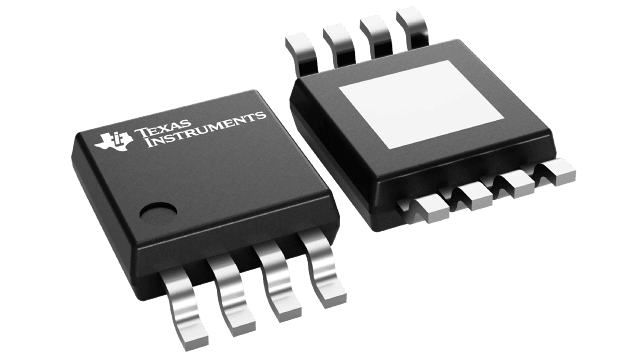

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

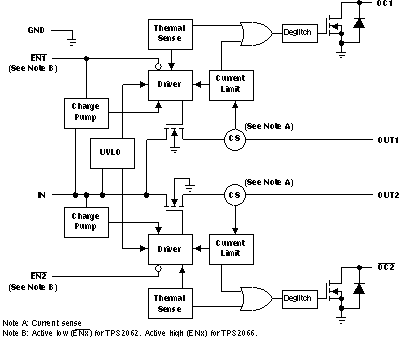

The TPS206x power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by a logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7V.
