ACTIVE
Local sensor accuracy (max) |
1 |
Type |
Local |
Operating temperature range (°C) |
-40 to 125 |
Supply voltage (min) (V) |
1.14 |
Interface type |
I2C, SMBus |
Supply voltage (max) (V) |
5.5 |
Features |
ALERT, One-shot conversion |
Supply current (max) (µA) |
5 |
Temp resolution (max) (bps) |
12 |
Remote channels (#) |
0 |
Addresses |
4, 8 |
Rating |
Catalog |

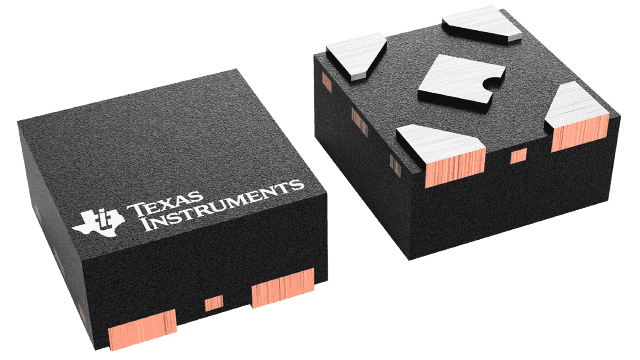

X2SON (DPW)-5-0.64 mm² 0.8 x 0.8
The TMP110 is a I2C-compatible digital temperature sensor in an ultra-small (0.64mm2) 5-pin package. The small size and height package optimizes volume constrained systems where DSBGA packages can be considered unsuitable. Unlike DSBGA packages of comparable size, TMP110 provides a 5th pin that can either be used as an address pin or alert pin, providing flexibility for both scalability of number of sensors or monitoring critical thermal events.
The TMP110 offers an accuracy of ±1.0°C across the temperature range with an on-chip 12-bit analog-to-digital converter (ADC) that provides a temperature resolution of 0.0625°C.
The TMP110 is designed to operate from a supply range as low as 1.14V, with a low average and shutdown current of 3.2µA (at 1Hz) and 0.15µA, respectively, allowing for an on-demand temperature conversion and maximizing of battery life. The supply can also be raised to as high as 5.5V for a range of industrial applications.
