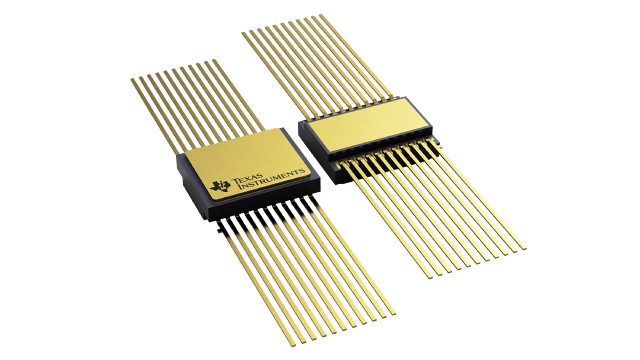

TPS7H3014-SP
  • TPS7H3014-SP
  • TPS7H3014-SP
  • TPS7H3014-SP

TPS7H3014-SP

ACTIVE

Radiation-hardened, QMLV, 14V four-channel power-supply sequencer

Texas Instruments TPS7H3014-SP Product Info

1 April 2026 0

Parameters

Number of supplies monitored

4

Number of sequenced outputs

4

Rating

Space

Supply voltage (max) (V)

14

Supply voltage (min) (V)

3

Iq (typ) (mA)

2.5

Operating temperature range (°C)

-55 to 125

Package

CFP (HFT)-22-60.221856 mm² 6.211 x 9.696

Features

  • Radiation performance:
    • Radiation hardness assurance (RHA) up to a total ionizing dose (TID) of 100 krad(Si) for the QML’s and 50 krad(Si) for the SEP
    • Single-event latchup (SEL), single-event burnout (SEB), and single-event gate rupture (SEGR) immune up to linear energy transfer (LET) = 75 MeV-cm2/mg for the QML’s and 43 MeV-cm2/mg for the SEP
    • Single-event functional interrupt (SEFI) and single-event transient (SET) characterized up to LET = 75 MeV-cm2/mg for the QML’s and 43 MeV-cm2/mg for the SEP
  • Wide supply IN voltage range (VIN): 3V to 14V
  • Sequence and monitor up to 4 voltage rails with a single device
    • Daisy chain capability for extended channel count
  • Single resistor programmable global timers for:
    • Sequence up and down delay
    • Sequence up time to regulation
  • Reverse order sequence down
  • Precision threshold voltage and hysteresis current
    • VTH_SENSEx of 599mV ±1% across: voltage, temperature, and radiation (TID)
    • IHYS_SENSEx of 24µA ±3% across: voltage, temperature, and radiation (TID)
  • Push-pull outputs with programmable pull-up voltage between 1.6V to 7V
    • Global ENx pull-up domain (VPULL_UP1)
    • Common SEQ_DONE and PWRGD pull-up domain (VPULL_UP2)
  • FAULT open drain output for monitoring of state machine induced faults

  • Plastic packages outgas tested per ASTM E595

  • Available in military (–55°C to 125°C) temperature range
  • Radiation performance:
    • Radiation hardness assurance (RHA) up to a total ionizing dose (TID) of 100 krad(Si) for the QML’s and 50 krad(Si) for the SEP
    • Single-event latchup (SEL), single-event burnout (SEB), and single-event gate rupture (SEGR) immune up to linear energy transfer (LET) = 75 MeV-cm2/mg for the QML’s and 43 MeV-cm2/mg for the SEP
    • Single-event functional interrupt (SEFI) and single-event transient (SET) characterized up to LET = 75 MeV-cm2/mg for the QML’s and 43 MeV-cm2/mg for the SEP
  • Wide supply IN voltage range (VIN): 3V to 14V
  • Sequence and monitor up to 4 voltage rails with a single device
    • Daisy chain capability for extended channel count
  • Single resistor programmable global timers for:
    • Sequence up and down delay
    • Sequence up time to regulation
  • Reverse order sequence down
  • Precision threshold voltage and hysteresis current
    • VTH_SENSEx of 599mV ±1% across: voltage, temperature, and radiation (TID)
    • IHYS_SENSEx of 24µA ±3% across: voltage, temperature, and radiation (TID)
  • Push-pull outputs with programmable pull-up voltage between 1.6V to 7V
    • Global ENx pull-up domain (VPULL_UP1)
    • Common SEQ_DONE and PWRGD pull-up domain (VPULL_UP2)
  • FAULT open drain output for monitoring of state machine induced faults

  • Plastic packages outgas tested per ASTM E595

  • Available in military (–55°C to 125°C) temperature range

Description

The TPS7H3014 is an integrated, 3V to 14V, four-channel radiation-hardness-assured power-supply sequencer. Channel count can be expanded by connecting multiple devices in a daisy-chain configuration. The device provides sequence up and down control signals for integrated circuits (IC) with active high ("on") inputs. In addition SEQ_DONE and PWRGD flags are provided to monitor the sequence and power status of the monitored power tree.

An accurate 599mV ±1% threshold voltage and a 24µA ±3% hysteresis current provide programmable rise and fall monitoring voltages. The rise and fall delay time is globally programmed via a single resistor. Also, a time-to-regulation timer is provided to track the rising voltage on SENSEx. In addition to these features, a FAULT detection pin is incorporated to monitor internally generated faults and provide increased system level reliability for power sequencing space applications. A standard microcircuit drawing (SMD) is available for the QML variant, 5962R2320101VXC.

The TPS7H3014 is an integrated, 3V to 14V, four-channel radiation-hardness-assured power-supply sequencer. Channel count can be expanded by connecting multiple devices in a daisy-chain configuration. The device provides sequence up and down control signals for integrated circuits (IC) with active high ("on") inputs. In addition SEQ_DONE and PWRGD flags are provided to monitor the sequence and power status of the monitored power tree.

An accurate 599mV ±1% threshold voltage and a 24µA ±3% hysteresis current provide programmable rise and fall monitoring voltages. The rise and fall delay time is globally programmed via a single resistor. Also, a time-to-regulation timer is provided to track the rising voltage on SENSEx. In addition to these features, a FAULT detection pin is incorporated to monitor internally generated faults and provide increased system level reliability for power sequencing space applications. A standard microcircuit drawing (SMD) is available for the QML variant, 5962R2320101VXC.
