ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.6 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
0.008 |
Slew rate (typ) (V/µs) |
0.0018 |
Vos (offset voltage at 25°C) (max) (mV) |
3.5 |
Iq per channel (typ) (mA) |
0.00045 |
Vn at 1 kHz (typ) (nV√Hz) |
420 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.5 |
Features |
EMI Hardened |
CMRR (typ) (dB) |
98 |
Iout (typ) (A) |
0.0047 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0.00054 |
Input common mode headroom (to positive supply) (typ) (V) |
0.00045 |
Output swing headroom (to negative supply) (typ) (V) |
0.0025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.0035 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

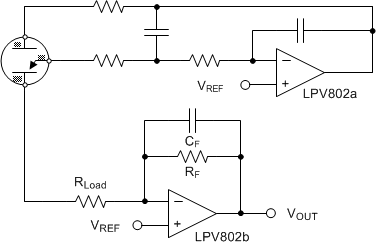

The LPV801 (single) and LPV802 (dual) comprise a family of ultra-low-power operational amplifiers for sensing applications in battery powered wireless and low power wired equipment. With 8kHz of bandwidth from 320nA of quiescent current, the LPV80x amplifiers minimize power consumption in equipment such as CO detectors, smoke detectors and PIR motion detectors where operational battery-life is critical.
In addition to being ultra-low-power, the LPV80x amplifiers have CMOS input stages with typically femto-amp bias currents. The LPV80x amplifiers also feature a negative-rail sensing input stage and a rail-to-rail output stage that is capable of swinging within millivolts of the rails, maintaining the widest dynamic range possible. EMI protection is designed into the LPV80x in order to reduce system sensitivity to unwanted RF signals from mobile phones, WiFi, radio transmitters and tag readers.
