TLV8801
  • TLV8801
  • TLV8801

TLV8801

ACTIVE

Single, 5.5-V, 6-kHz, ultra low quiescent current (450-nA), RRIO operational amplifier

Texas Instruments TLV8801 Product Info

1 April 2026 5

Parameters

Number of channels

1

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

5.5

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

1.7

Rail-to-rail

In to V-, Out

GBW (typ) (MHz)

0.006

Slew rate (typ) (V/µs)

0.0015

Vos (offset voltage at 25°C) (max) (mV)

4.5

Iq per channel (typ) (mA)

0.00045

Vn at 1 kHz (typ) (nV√Hz)

450

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Offset drift (typ) (µV/°C)

1

Features

Cost Optimized, EMI Hardened

CMRR (typ) (dB)

90

Iout (typ) (A)

0.0047

Architecture

CMOS

Input common mode headroom (to negative supply) (typ) (V)

0.0007

Input common mode headroom (to positive supply) (typ) (V)

0.00045

Output swing headroom (to negative supply) (typ) (V)

0.0025

Output swing headroom (to positive supply) (typ) (V)

-0.0035

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • For Cost-Optimized Systems
  • Nanopower Supply Current: 320 nA/channel
  • Offset Voltage: 4.5 mV (max)
  • Good TcVos: 1 µV/°C
  • Unity Gain-Bandwidth: 6 kHz
  • Unity-Gain Stable
  • Low Input Bias Current : 0.1pA
  • Wide Supply Range: 1.7 V to 5.5 V
  • Rail-to-Rail Output
  • No Output Reversals
  • EMI Protection
  • Temperature Range: –40°C to 125°C
  • Industry Standard Packages:
    • Single in 5-pin SOT-23
    • Dual in 8-pin VSSOP
  • For Cost-Optimized Systems
  • Nanopower Supply Current: 320 nA/channel
  • Offset Voltage: 4.5 mV (max)
  • Good TcVos: 1 µV/°C
  • Unity Gain-Bandwidth: 6 kHz
  • Unity-Gain Stable
  • Low Input Bias Current : 0.1pA
  • Wide Supply Range: 1.7 V to 5.5 V
  • Rail-to-Rail Output
  • No Output Reversals
  • EMI Protection
  • Temperature Range: –40°C to 125°C
  • Industry Standard Packages:
    • Single in 5-pin SOT-23
    • Dual in 8-pin VSSOP

Description

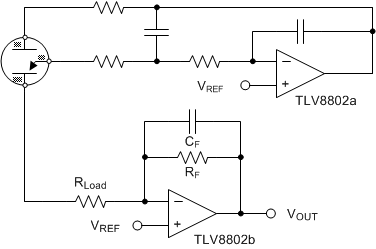

The TLV8801 (single) and TLV8802 (dual) family of ultra-low-power operational amplifiers are ideal for cost-optimized sensing applications in wireless and low power wired equipment. The TLV880x amplifiers minimize power consumption in equipment such as CO detectors, smoke detectors and motion detecting security systems (like PIR motion sensing) where operational battery-life is critical. They also have a carefully designed CMOS input stage enabling very low, femto-amp bias currents, thereby reducing IBIAS and IOS errors that would otherwise impact sensitive applications like transimpedance amplifier (TIA) configurations with megaohm feedback resistors, and high source impedance sensing applications. Additionally, built-in EMI protection reduces sensitivity to unwanted RF signals from sources like mobile phones, WiFi, radio transmitters and tag readers.

The TLV8801 (single) and TLV8802 (dual) channel versions are available in industry standard 5-pin SOT-23 and 8-pin VSSOP packages respectively.
