TMUXS7614D
  • TMUXS7614D
  • TMUXS7614D

TMUXS7614D

ACTIVE

50V, SPI-controlled, 1Ω RON, high-density, 1:1 (SPST) 8-channel precision switch with 1.8V logic

Texas Instruments TMUXS7614D Product Info

1 April 2026 3

Parameters

Configuration

1:1 SPST

Number of channels

8

Power supply voltage - single (V)

5, 12, 16, 20, 36, 40

Power supply voltage - dual (V)

+/- 25, +/-10, +/-15, +/-18, +/-22, +/-5

Protocols

SPI

Ron (typ) (Ω)

1

CON (typ) (pF)

22

ON-state leakage current (max) (µA)

0.0008

Supply current (typ) (µA)

840

Bandwidth (MHz)

180

Operating temperature range (°C)

-40 to 125

Features

1.2-V compatible control inputs, 1.8-V compatible control inputs, Break-before-make

Input/output continuous current (max) (A)

0.47

Rating

Catalog

Supply voltage (max) (V)

42

Negative rail supply voltage (max) (V)

-25

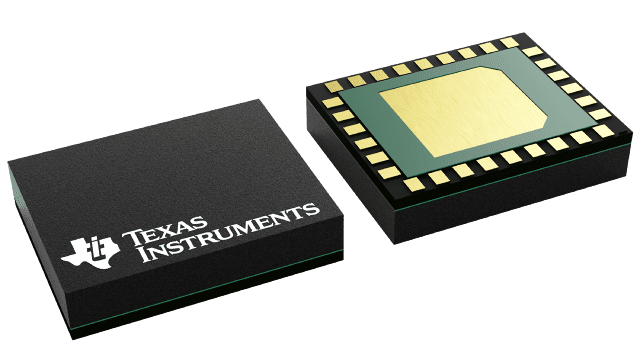

Package

FCLGA (ZEM)-30-20 mm² 5 x 4

Features

  • Dual supply range: ±4.5V to ±25V
  • Single supply range: 4.5V to 42V
  • Asymmetric dual supply support (For example: VDD=37.5V, VSS=-12.5V)
  • 1.8V logic compatible
  • SPI supply range: 1.8V – 5.5V
  • SPI Interface with support up to 50MHz
    • Manual mode (Standard SPI or Burst mode)
    • SPI error detection: CRC, invalid read/write, and clock count error
    • Compatible with SPI industry standard modes 0 and 3
  • Ultra high channel density (2.5mm2/ch)
    • Flow through SPI and supply routing for increased board density
    • Integrated decoupling capacitors
  • Precision performance:
    • Low on-resistance: 1Ω (typical)
    • Ultra low on-resistance flatness: 0.001Ω (typical)
    • Low on-leakage current: 13pA (typical), 350pA (maximum)
    • Ultra low charge injection: 2pC (typical)
  • High current support: 470mA per channel (maximum)
  • –40°C to +125°C operating temperature
  • Rail-to-rail operation
  • Bidirectional operation
  • Break-before-make switching
  • ESD protection HBM: 3000V
  • Dual supply range: ±4.5V to ±25V
  • Single supply range: 4.5V to 42V
  • Asymmetric dual supply support (For example: VDD=37.5V, VSS=-12.5V)
  • 1.8V logic compatible
  • SPI supply range: 1.8V – 5.5V
  • SPI Interface with support up to 50MHz
    • Manual mode (Standard SPI or Burst mode)
    • SPI error detection: CRC, invalid read/write, and clock count error
    • Compatible with SPI industry standard modes 0 and 3
  • Ultra high channel density (2.5mm2/ch)
    • Flow through SPI and supply routing for increased board density
    • Integrated decoupling capacitors
  • Precision performance:
    • Low on-resistance: 1Ω (typical)
    • Ultra low on-resistance flatness: 0.001Ω (typical)
    • Low on-leakage current: 13pA (typical), 350pA (maximum)
    • Ultra low charge injection: 2pC (typical)
  • High current support: 470mA per channel (maximum)
  • –40°C to +125°C operating temperature
  • Rail-to-rail operation
  • Bidirectional operation
  • Break-before-make switching
  • ESD protection HBM: 3000V

Description

The TMUXS7614D is a complementary metal-oxide semiconductor (CMOS) switch device with eight independently selectable 1:1, single-pole, single-throw (SPST) switch channels. The device works with a single supply (4.5V to 42V), dual supplies (±4.5V to ±25V), or asymmetric supplies (such as VDD = 37.5V, VSS = –12V). The TMUXS7614D supports bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from VSS to VDD.

The switches of the TMUXS7614D are controlled with a serial peripheral interface (SPI). The SPI interface has many error detection features, such as CRC, invalid read/write, and clock count error detection. The SPI also supports Daisy Chain mode. Coupled with the flow through routing of the SPI pins, this allows for increased channel density in the system. The TMUXS7614D is a part of the precision switches and multiplexers family of devices that have very low on and off leakage currents allowing them to be used in high precision measurement applications.
