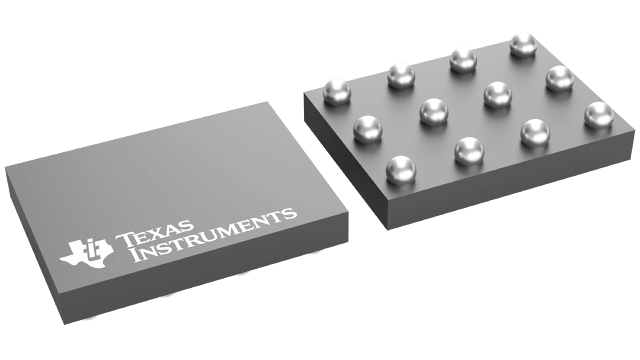

DSBGA (YPH)-12-2.8896 mm² 2.064 x 1.4

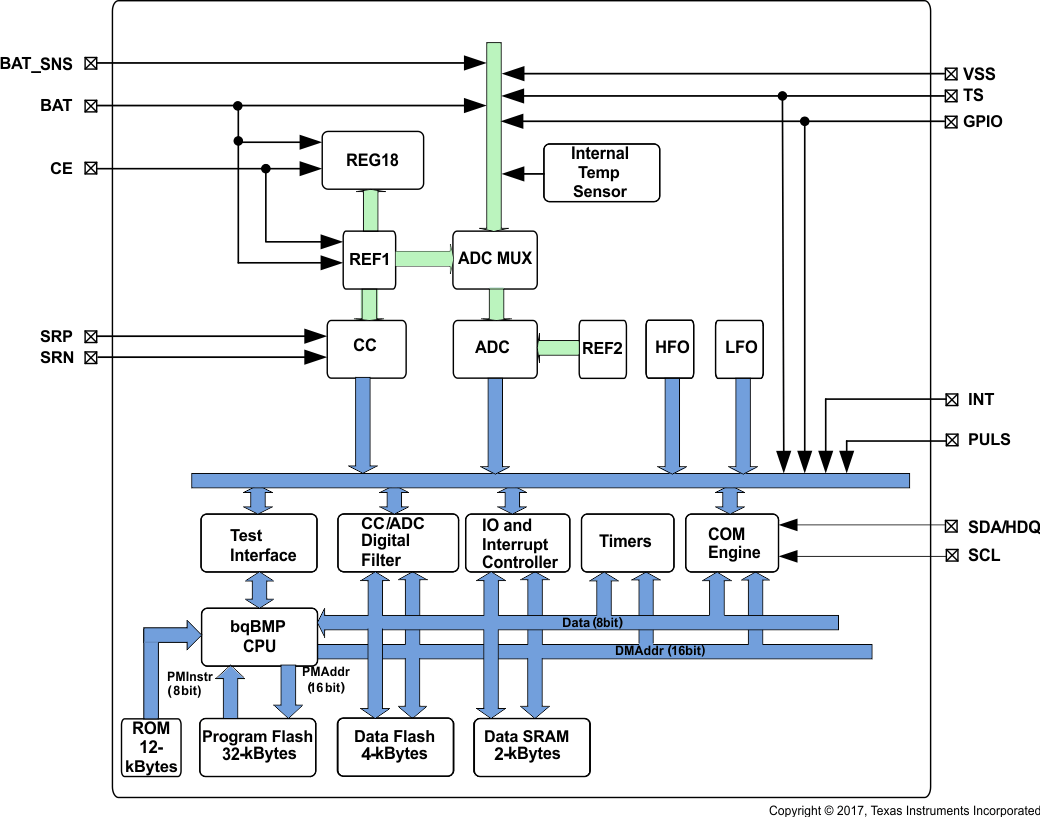

The Texas Instruments BQ27Z561 Impedance Track™ gas gauge solution is a highly integrated, accurate, 1-series cell gas gauge with a flash programmable custom reduced instruction-set CPU (RISC) and SHA-256 authentication for Li-ion and Li-polymer battery packs. The 1-series cell capability includes parallel cells for increased capacity.

The BQ27Z561 gas gauge communicates using I2C-compatible and HDQ one-wire interfaces and includes several key features that help facilitate accurate gas gauging applications. Integrated temperature sense functions (internal and external options) enable system and battery temperature measurements. The integrated SHA-256 functionality helps enable secure identification between systems and packs. The interrupt function facilitates the BQ27Z561 device to inform the system when a state-of-charge (SOC), voltage, or temperature fault occurs. The low-voltage operation enables the system to continue monitoring the battery, even in deeply discharged conditions. During low-activity situations, the device can be set to the low power coulomb counting (CC) mode, which allows the device to continue coulomb counting while significantly reducing operating current.
