MCF8329HS-Q1
  • MCF8329HS-Q1
  • MCF8329HS-Q1

MCF8329HS-Q1

ACTIVE

Automotive, 12V and 24V, sensorless field-oriented control (FOC) three-phase BLDC gate driver

Texas Instruments MCF8329HS-Q1 Product Info

1 April 2026 0

Parameters

Rating

Automotive

Architecture

Gate driver

Control topology

Field-oriented control (FOC), Sensorless

Control interface

1xPWM, Analog, I2C, Serial

Vs (min) (V)

4.5

Vs ABS (max) (V)

60

Features

Code-free Field Oriented Control (FOC), Configurable motor startup and stop options, Improved acoustic performance with automatic dead time compensation, Integrated protections UVLO, Offline motor parameters measurement with Motor Parameter Extraction Tool (MPET)

Operating temperature range (°C)

-40 to 125

Package

WQFN (RRY)-32-24 mm² 6 x 4

Features

  • AEC-Q100 qualified for automotive applications
    • Temperature Grade-1 : –40°C ≤ TA ≤ 125°C
  • Three-phase BLDC gate driver with integrated sensorless motor control algorithm
    • Code-free Field Oriented Control (FOC)
    • Supports up to 2.5kHz (electrical frequency)
    • Speed, current, power or voltage control modes
    • Forward and reverse windmilling support
    • Configurable power and speed limit
    • Analog, PWM, freq. or I2C based control input
    • Configurable dry run detection for pumps
    • External MCU watchdog monitoring with limp home mode and reset signal
    • Optional 1-Hall input support
    • 5-point configurable reference profile support
    • Anti-voltage surge and active braking to prevent DC bus overvoltage
    • Flux weakening for high speed operation
    • Maximum torque per ampere (MTPA) for higher efficiency
  • 65V Three phase half-bridge gate driver
    • Drives 3 high-side and 3 low-side N-channel MOSFETs, 4.5 to 60V operating voltage
    • Supports 100% PWM duty cycle
    • Bootstrap based gate driver architecture
    • 1A/2A peak source/sink current
  • Integrated current sense amplifier
    • Adjustable gain (5, 10, 20, 40V/V)
  • Low power sleep mode
    • 5µA (maximum) at VPVDD = 24V, TA = 25°C
  • Speed loop accuracy: < 3% with internal clock
  • Configurable EEPROM with R/W security
  • Support up to 80kHz PWM switching frequency
  • Configurable LDO: (3.3V or 5V) ± 3%, 50mA
  • Independent driver shutdown path (DRVOFF)
  • Spread spectrum and PWM dithering for EMI mitigation
  • Suite of integrated protection features
    • Undervoltage protection on all supply rails
    • Loss of phase (no motor) detection including lost phase(s) information
    • Short-circuit protection (VDS) for all 6 FETs
    • Motor lock detection
    • Thermal shutdown (TSD)
    • Fault indication on nFAULT or FG pin
    • Optional fault diagnostics over I2C interface
  • AEC-Q100 qualified for automotive applications
    • Temperature Grade-1 : –40°C ≤ TA ≤ 125°C
  • Three-phase BLDC gate driver with integrated sensorless motor control algorithm
    • Code-free Field Oriented Control (FOC)
    • Supports up to 2.5kHz (electrical frequency)
    • Speed, current, power or voltage control modes
    • Forward and reverse windmilling support
    • Configurable power and speed limit
    • Analog, PWM, freq. or I2C based control input
    • Configurable dry run detection for pumps
    • External MCU watchdog monitoring with limp home mode and reset signal
    • Optional 1-Hall input support
    • 5-point configurable reference profile support
    • Anti-voltage surge and active braking to prevent DC bus overvoltage
    • Flux weakening for high speed operation
    • Maximum torque per ampere (MTPA) for higher efficiency
  • 65V Three phase half-bridge gate driver
    • Drives 3 high-side and 3 low-side N-channel MOSFETs, 4.5 to 60V operating voltage
    • Supports 100% PWM duty cycle
    • Bootstrap based gate driver architecture
    • 1A/2A peak source/sink current
  • Integrated current sense amplifier
    • Adjustable gain (5, 10, 20, 40V/V)
  • Low power sleep mode
    • 5µA (maximum) at VPVDD = 24V, TA = 25°C
  • Speed loop accuracy: < 3% with internal clock
  • Configurable EEPROM with R/W security
  • Support up to 80kHz PWM switching frequency
  • Configurable LDO: (3.3V or 5V) ± 3%, 50mA
  • Independent driver shutdown path (DRVOFF)
  • Spread spectrum and PWM dithering for EMI mitigation
  • Suite of integrated protection features
    • Undervoltage protection on all supply rails
    • Loss of phase (no motor) detection including lost phase(s) information
    • Short-circuit protection (VDS) for all 6 FETs
    • Motor lock detection
    • Thermal shutdown (TSD)
    • Fault indication on nFAULT or FG pin
    • Optional fault diagnostics over I2C interface

Description

The MCF8329HS-Q1 provides a single-chip, code-free sensorless FOC solution for driving 12V or 24V automotive brushless-DC motors (BLDC) or Permanent Magnet Synchronous motors (PMSM) up to 2.5kHz (electrical speed). The MCF8329HS-Q1 provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. A trickle charge pump is included to support 100% duty cycle. The MCF8329HS-Q1 can operate from a single power supply.

The algorithm configuration can be stored in non-volatile EEPROM, which allows the device to operate stand-alone once it has been configured. There are a large number of protection features integrated into the MCF8329HS-Q1, intended to protect the device, motor, and system against fault events.

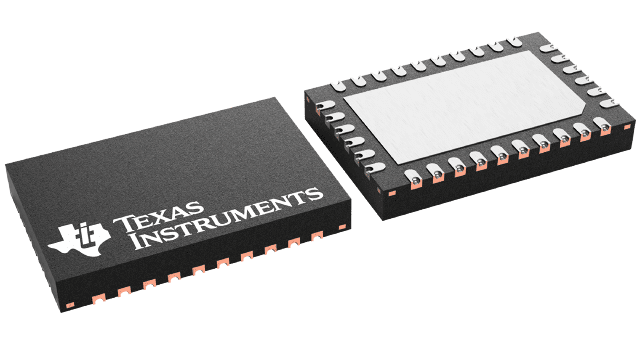

MCF8329HS-Q1 is available in a 32-pin, 0.5mm pin pitch, 6x4mm, wettable flank WQFN package (RRY).

Documentation for reference:

The MCF8329HS-Q1 provides a single-chip, code-free sensorless FOC solution for driving 12V or 24V automotive brushless-DC motors (BLDC) or Permanent Magnet Synchronous motors (PMSM) up to 2.5kHz (electrical speed). The MCF8329HS-Q1 provide three half-bridge gate drivers, each capable of driving high-side and low-side N-channel power MOSFETs. A trickle charge pump is included to support 100% duty cycle. The MCF8329HS-Q1 can operate from a single power supply.

The algorithm configuration can be stored in non-volatile EEPROM, which allows the device to operate stand-alone once it has been configured. There are a large number of protection features integrated into the MCF8329HS-Q1, intended to protect the device, motor, and system against fault events.

MCF8329HS-Q1 is available in a 32-pin, 0.5mm pin pitch, 6x4mm, wettable flank WQFN package (RRY).
