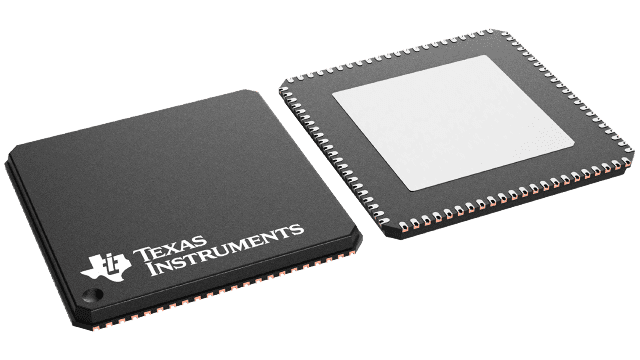

DS90UB984-Q1
  • DS90UB984-Q1

DS90UB984-Q1

ACTIVE

4K FPD-Link IV to embedded DisplayPort™ bridge deserializer

Texas Instruments DS90UB984-Q1 Product Info

1 April 2026 0

Parameters

Applications

In-vehicle Infotainment (IVI)

Input compatibility

FPD-Link IV LVDS

Function

Deserializer

Output compatibility

DisplayPort/eDP

Color depth (bpp)

30

Parallel video bandwidth (per port) (max) (Gbps)

25.9

Serial video bandwidth (per port) (max) (Gbps)

13.1

Features

Daisy chain, Low-EMI Point-to-Point Communication, Spread-Spectrum Clock (SSC) Generation

Signal conditioning

Adaptive Equalizer

EMI reduction

LVDS

Diagnostics

BIST

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

VQFNP (RUR)-88-144 mm² 12 x 12

Features

  • DisplayPort (DP) / Embedded DisplayPort (eDP) transmitter
    • VESA DP v1.4a/eDP v1.4b transmitter
    • HBR3/HBR2/HBR/RBR link bit rates
    • Main Link: 1, 2, or 4 lanes
    • Each lane up to 8.1Gbps
    • AUX CH 1Mbps
    • Hot Plug Detect (HPD)
    • Extracts aggregated video streams to local eDP display
    • Designed for 4 K at 60Hz video resolution
    • Stream synchronization and splitting
  • FPD-Link IV interface
    • 13.5/12.528/10.8/6.75/3.375Gbps per channel; Up to 27Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Ultra-low Latency Control Channel
    • Two fast-mode plus I2C up to 1 MHz (up to 3.4MHz local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass-through GPIOs
  • Backwards compatibility
    • 720p 92x and 1080p/2K 94x FPD-Link III product families
  • Security and diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread Spectrum Clocking Generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V Dual power supply
  • AEC-Q100 Qualified for automotive applications
    • AEC-Q grade-level 2 , –40°C to 105°C
    • ISO 10605 and IEC 61000-4-2 ESD compliant
  • DisplayPort (DP) / Embedded DisplayPort (eDP) transmitter
    • VESA DP v1.4a/eDP v1.4b transmitter
    • HBR3/HBR2/HBR/RBR link bit rates
    • Main Link: 1, 2, or 4 lanes
    • Each lane up to 8.1Gbps
    • AUX CH 1Mbps
    • Hot Plug Detect (HPD)
    • Extracts aggregated video streams to local eDP display
    • Designed for 4 K at 60Hz video resolution
    • Stream synchronization and splitting
  • FPD-Link IV interface
    • 13.5/12.528/10.8/6.75/3.375Gbps per channel; Up to 27Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Ultra-low Latency Control Channel
    • Two fast-mode plus I2C up to 1 MHz (up to 3.4MHz local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass-through GPIOs
  • Backwards compatibility
    • 720p 92x and 1080p/2K 94x FPD-Link III product families
  • Security and diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread Spectrum Clocking Generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V Dual power supply
  • AEC-Q100 Qualified for automotive applications
    • AEC-Q grade-level 2 , –40°C to 105°C
    • ISO 10605 and IEC 61000-4-2 ESD compliant

Description

The DS90UB984-Q1 is an FPD-Link IV to DisplayPort (DP) / Embedded DisplayPort (eDP) bridge device. In conjunction with an FPD-Link IV serializer, the chipset receives a high-speed serialized interface over low-cost 50Ω coax or STP/STQ cables. The DS90UB984-Q1 is a VESA DP v1.4a/eDP v1.4b compatible device that supports advanced features such as HBR3, and SuperFrame formats. The device supports video resolutions of 4K 30-bit color and higher. The FPD-Link IV interface supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video data and control over FPD-Link IV lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible FPD-Link III mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link .

The DS90UB984-Q1 is an FPD-Link IV to DisplayPort (DP) / Embedded DisplayPort (eDP) bridge device. In conjunction with an FPD-Link IV serializer, the chipset receives a high-speed serialized interface over low-cost 50Ω coax or STP/STQ cables. The DS90UB984-Q1 is a VESA DP v1.4a/eDP v1.4b compatible device that supports advanced features such as HBR3, and SuperFrame formats. The device supports video resolutions of 4K 30-bit color and higher. The FPD-Link IV interface supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video data and control over FPD-Link IV lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible FPD-Link III mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link .
