ACTIVE
Setpoint type |
Pin-Selectable |
Setpoint value (°C) |
50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 105, 110, 115, 120, 125 |
Operating temperature range (°C) |
-40 to 125 |
Accuracy over temp range (max) (°C) |
2 |
Output type |
Open drain |
Supply voltage (min) (V) |
1.4 |
Supply voltage (max) (V) |
3.6 |
Supply current (typ) (µA) |
8 |
Number of comparator channels |
1 |
Features |
Built-in hysteresis |
Rating |
Catalog |
Interface type |
Switch |

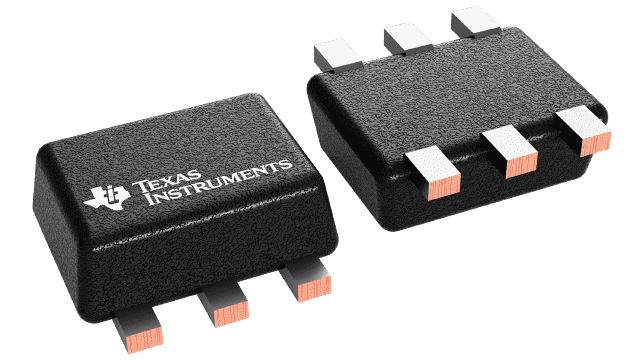

SOT-5X3 (DRL)-6-2.56 mm² 1.6 x 1.6

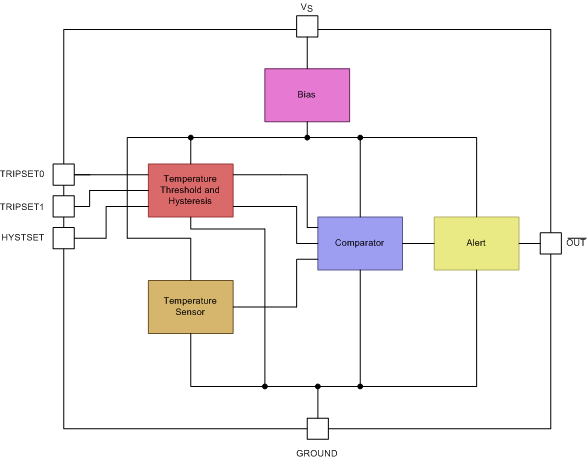

The TMP302 device is a temperature switch in a micropackage (SOT563). The TMP302 offers low power (15-µA maximum) and ease-of-use through pin-selectable trip points and hysteresis.
These devices require no additional components for operation; they can function independent of microprocessors or microcontrollers.
The TMP302 is available in several different versions. For additional trip points, contact a TI representative.
