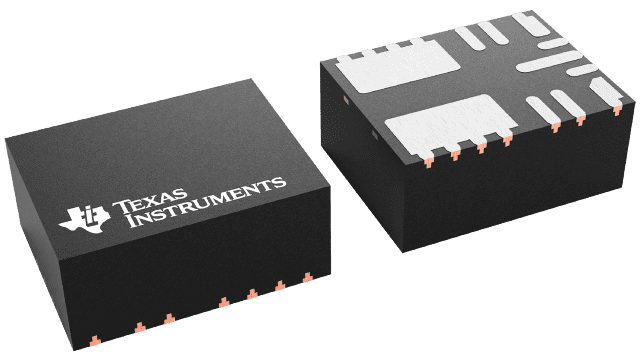

TLVM365R1
  • TLVM365R1
  • TLVM365R1

TLVM365R1

ACTIVE

3-V to 65-V input, 1-V to 6-V output, 0.1-A synchronous buck converter power module

Texas Instruments TLVM365R1 Product Info

1 April 2026 4

Parameters

Rating

Catalog

Topology

Synchronous Buck

Iout (max) (A)

0.1

Vin (max) (V)

65

Vin (min) (V)

3

Vout (max) (V)

16

Vout (min) (V)

-0.3

Features

EMI Tested, Enable, Light load efficiency, Power good

EMI features

Integrated capacitors, Spread Spectrum

Operating temperature range (°C)

-40 to 125

TI functional safety category

Functional Safety-Capable

Type

Module

Duty cycle (max) (%)

98

Control mode

Peak-Current

Switching frequency (min) (kHz)

200

Switching frequency (max) (kHz)

2200

Package

QFN-FCMOD (RDN)-11-15.75 mm² 4.5 x 3.5

Features

  • Functional Safety-Capable
  • Versatile synchronous buck DC/DC module:
    • Integrated MOSFETs, inductor, and controller
    • 3-V to 65-V wide input voltage range
    • Up to 70-V input transient
    • –40°C to +125°C junction temperature range
    • 4.5-mm × 3.5-mm × 2-mm overmolded package
    • Frequency adjustable from 200 kHz to 2.2 MHz using the RT pin
  • Output voltage and current options:
    • Fixed output variants of 3.3-V or 5-V VOUT
    • Adjustable output voltage from 1 V to 6 V
  • Inherent protection features for robust design
    • Precision enable input and open-drain PGOOD indicator for control, sequencing, and VIN UVLO
    • Overcurrent and thermal shutdown protections
  • Designed for scalable industrial power supplies:
  • Create a custom design using the TLVM365R15 with the WEBENCH Power Designer
  • Functional Safety-Capable
  • Versatile synchronous buck DC/DC module:
    • Integrated MOSFETs, inductor, and controller
    • 3-V to 65-V wide input voltage range
    • Up to 70-V input transient
    • –40°C to +125°C junction temperature range
    • 4.5-mm × 3.5-mm × 2-mm overmolded package
    • Frequency adjustable from 200 kHz to 2.2 MHz using the RT pin
  • Output voltage and current options:
    • Fixed output variants of 3.3-V or 5-V VOUT
    • Adjustable output voltage from 1 V to 6 V
  • Inherent protection features for robust design
    • Precision enable input and open-drain PGOOD indicator for control, sequencing, and VIN UVLO
    • Overcurrent and thermal shutdown protections
  • Designed for scalable industrial power supplies:
  • Create a custom design using the TLVM365R15 with the WEBENCH Power Designer

Description

The TLVM365R15 and TLVM365R1 are 150-mA or 100-mA, 65-V input, synchronous step-down DC/DC power modules that combine power MOSFETs, integrated inductor, and boot capacitor in a compact and easy-to-use 3.5-mm × 4.5-mm × 2-mm, 11-pin QFN package. The small HotRod™ QFN package technology enhances the thermal performance and low EMI. The device features the ultra-low operating IQ of 4 µA at no load (24-V to 3.3-V VOUT). The TLVM365R15 and TLVM365R1 support fixed 3.3-V and 5-V outputs, as well as adjustable output voltages ranging from 1 V to 6 V. The devices only require four external components for a 3.3-V and 5-V fixed output design. The TLVM365R15 and TLVM365R1 are designed for excellent EMI performance and space constraint applications.
