TPS767D301-EP
  • TPS767D301-EP

TPS767D301-EP

ACTIVE

Enhanced product, dual-output low-dropout voltage regular

Texas Instruments TPS767D301-EP Product Info

1 April 2026 5

Parameters

Rating

HiRel Enhanced Product

Vin (max) (V)

10

Vin (min) (V)

2.7

Iout (max) (A)

1

Output options

Adjustable Output, Dual output, Fixed Output

Vout (max) (V)

5.5

Vout (min) (V)

1.5

Fixed output options (V)

3.3

Noise (µVrms)

55

PSRR at 100 KHz (dB)

30

Iq (typ) (mA)

0.08

Features

Enable

Thermal resistance θJA (°C/W)

28

Load capacitance (min) (µF)

10

Regulated outputs (#)

2

Accuracy (%)

2

Dropout voltage (Vdo) (typ) (mV)

350

Operating temperature range (°C)

-55 to 125

Package

HTSSOP (PWP)-28-62.08 mm² 9.7 x 6.4

Features

  • Controlled Baseline
    • One Assembly/Test Site, One Fabrication Site
  • Extended Temperature Performance of –55°C to 125°C
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product-Change Notification
  • Qualification Pedigree(1)
  • Dual Output Voltages for Split-Supply
    Applications
  • Output Current Range of 0 mA to 1.0 A Per
    Regulator
  • 3.3-V/Adjustable Output
  • Fast Transient Response
  • 3% Tolerance Over Load and Temperature
  • Dropout Voltage Typically 350 mV at 1 A
  • Ultra-Low 85-µA Typical Quiescent Current
  • 1-µA Quiescent Current During Shutdown
  • Dual Open-Drain Power-On Reset With
    200-ms Delay for Each Regulator

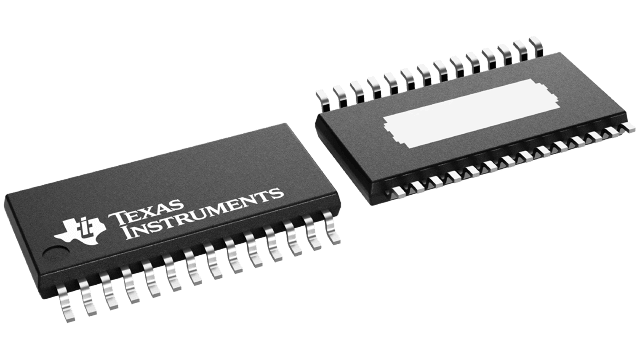

  • 28-Pin PowerPAD TSSOP Package
  • Thermal Shutdown Protection for Each
    Regulator

(1) Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified
performance and environmental limits.

  • Controlled Baseline
    • One Assembly/Test Site, One Fabrication Site
  • Extended Temperature Performance of –55°C to 125°C
  • Enhanced Diminishing Manufacturing Sources (DMS) Support
  • Enhanced Product-Change Notification
  • Qualification Pedigree(1)
  • Dual Output Voltages for Split-Supply
    Applications
  • Output Current Range of 0 mA to 1.0 A Per
    Regulator
  • 3.3-V/Adjustable Output
  • Fast Transient Response
  • 3% Tolerance Over Load and Temperature
  • Dropout Voltage Typically 350 mV at 1 A
  • Ultra-Low 85-µA Typical Quiescent Current
  • 1-µA Quiescent Current During Shutdown
  • Dual Open-Drain Power-On Reset With
    200-ms Delay for Each Regulator
  • 28-Pin PowerPAD TSSOP Package
  • Thermal Shutdown Protection for Each
    Regulator

(1) Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified
performance and environmental limits.

Description

The TPS767D301-EP dual-voltage regulator offers fast transient response, low dropout (LDO) voltages, and dual outputs in a compact package and incorporates stability with 10-µF low-ESR output capacitors.

The TPS767D301-EP dual-voltage regulator is designed primarily for DSP applications. This device can be used in any mixed-output voltage application, with each regulator supporting up to 1 A. Dual active-low reset (RESET) signals allow resetting of core logic and I/O separately.

Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 85 µA over the full range of output current, 0 mA to 1 A). These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO device also features a sleep mode; applying a TTL high signal to enable (EN) shuts down the regulator, reducing the quiescent current to 1 µA at TJ = 25°C.

The RESET output of the TPS767D301-EP initiates a reset in microcomputer and microprocessor systems in the event of an undervoltage condition. An internal comparator in the TPS767D301-EP monitors the output voltage of the regulator to detect an undervoltage condition on the regulated output voltage.

The TPS767D301-EP is offered in an adjustable version (programmable over the range of 1.5 V to 5.5 V). Output voltage tolerance is specified as a maximum of 3% over line, load, and temperature ranges. The TPS767D301-EP is available in a 28-pin PWP (TSSOP) package. The device operates over a junction temperature range of –55°C to 125°C.
