0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
16 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
1.1 |
Slew rate (typ) (V/µs) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
1.5 |
Iq per channel (typ) (mA) |
0.12 |
Vn at 1 kHz (typ) (nV√Hz) |
30 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.6 |
Features |
Cost Optimized, EMI Hardened, High Cload Drive, MUX Friendly, Small Size |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.08 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
0.025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |
SOIC (D)-14-51.9 mm² 8.65 x 6
The TLV910x family (TLV9101, TLV9102, and TLV9104) is a family of 16-V general purpose operational amplifiers. This family offers excellent DC precision and AC performance, including rail-to-rail input/output, low offset (±300 µV, typ), low offset drift (±0.6 µV/°C, typ), and 1.1-MHz bandwidth.
Wide differential and common-mode input-voltage range, high output current (±80 mA, typ), high slew rate (4.5 V/µs, typ), low power operation (115 µA, typ) and shutdown functionality make the TLV910x a robust, low-power, high-performance operational amplifier for industrial applications.

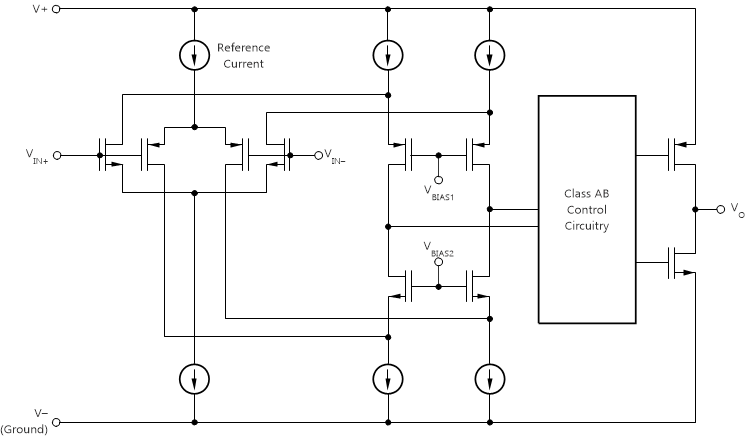

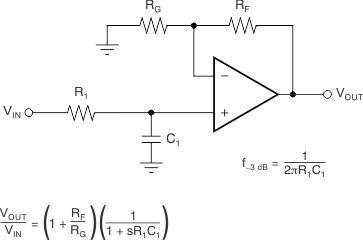

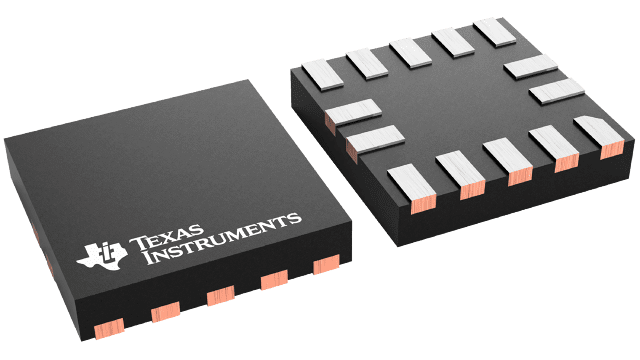

The TLV910x family of op amps is available in micro-size packages, as well as standard packages, and is specified from –40°C to 125°C.
